SSB

+ 200°C

30 BAR

Scheda tecnica

Scambiatori di calore a piastre saldobrasati

Brazed plate heat exchangers

VERSIONE NUDA | BARE VERSION

MODEL

SSB B14

SSB B20

SSB B30

SSB B40

SSB B50

N.

H

L

P

W

DB

DN1

G1” M

G1” M

G1” M

G1” M

G1” M

DN1

G1” M

G1” M

G1” M

G1” M

G1” M

DN2

G1” M

G1” M

G1” M

G1” M

G1” M

DN2

G1” M

G1” M

G1” M

G1” M

G1” M

DN3

G1” M

G1” M

G1” M

G1” M

G1” M

DN3

G1” M

G1” M

G1” M

G1” M

G1” M

DN4

G1” M

G1” M

G1” M

G1” M

G1” M

DN4

G1” M

G1” M

G1” M

G1” M

G1” M

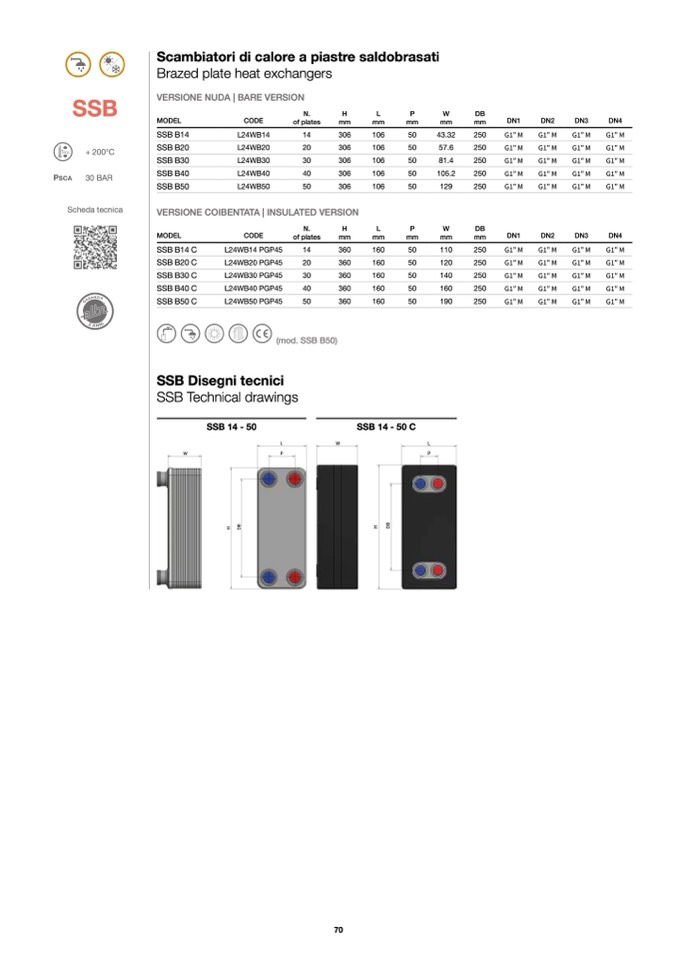

SSB Disegni tecnici

SSB Technical drawings

SSB 14 - 50

CODE

of plates

L24WB14

14

L24WB20

20

L24WB30

30

L24WB40

40

L24WB50

50

mm

mm

mm

306

106

50

306

106

50

306

106

50

306

106

50

306

106

50

mm

mm

43.32

250

57.6

250

81.4

250

105.2

250

129

250

VERSIONE COIBENTATA | INSULATED VERSION

MODEL

SSB B14 C

SSB B20 C

SSB B30 C

SSB B40 C

SSB B50 C

CODE

L24WB14 PGP45

L24WB20 PGP45

L24WB30 PGP45

L24WB40 PGP45

L24WB50 PGP45

N.

H

L

P

W

DB

of plates

mm

14

360

20

360

30

360

40

360

50

360

mm

mm

mm

mm

160

50

110

250

160

50

120

250

160

50

140

250

160

50

160

250

160

50

190

250

SSB 14 - 50 C

(mod. SSB B50)

L

W

L

W

P

P

70

H

D

B

H

D

B
