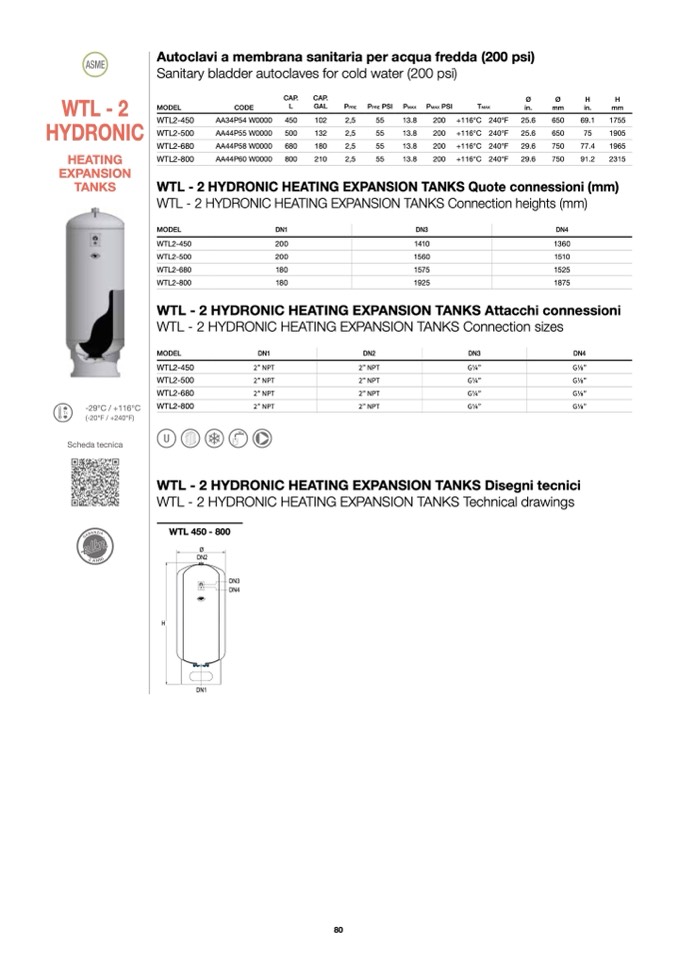

WTL - 2

HYDRONIC

HEATING

EXPANSION

TANKS

-29°C / +116°C

(-20°F / +240°F)

CAP.

CAP.

MODEL

CODE

L

GAL

P

PRE

P

PRE

PSI P

MAX

P

MAX

PSI

T

MAX

55

13.8

200 +116°C 240°F

55

13.8

200 +116°C 240°F

55

13.8

200 +116°C 240°F

55

13.8

200 +116°C 240°F

Ø

Ø

H

H

Autoclavi a membrana sanitaria per acqua fredda (200 psi)

Sanitary bladder autoclaves for cold water (200 psi)

WTL2-450

WTL2-500

WTL2-680

WTL2-800

AA34P54 W0000

AA44P55 W0000

AA44P58 W0000

AA44P60 W0000

450

102

2,5

500

132

2,5

680

180

2,5

800

210

2,5

in.

mm

25.6

650

25.6

650

29.6

750

29.6

750

in.

mm

69.1

1755

75

1905

77.4

1965

91.2

2315

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Quote connessioni (mm)

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Connection heights (mm)

MODEL

WTL2-450

WTL2-500

WTL2-680

WTL2-800

DN1

DN3

DN4

200

1410

1360

200

1560

1510

180

1575

1525

180

1925

1875

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Attacchi connessioni

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Connection sizes

MODEL

DN1

DN2

DN3

DN4

WTL2-450

WTL2-500

WTL2-680

WTL2-800

2” NPT

2” NPT

2” NPT

2” NPT

2” NPT

2” NPT

2” NPT

2” NPT

G1⁄4”

G1⁄8”

G1⁄4”

G1⁄8”

G1⁄4”

G1⁄8”

G1⁄4”

G1⁄8”

Scheda tecnica

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Disegni tecnici

WTL - 2 HYDRONIC HEATING EXPANSION TANKS Technical drawings

WTL 450 - 800

Ø

DN2

DN1

DN3

DN4

H
