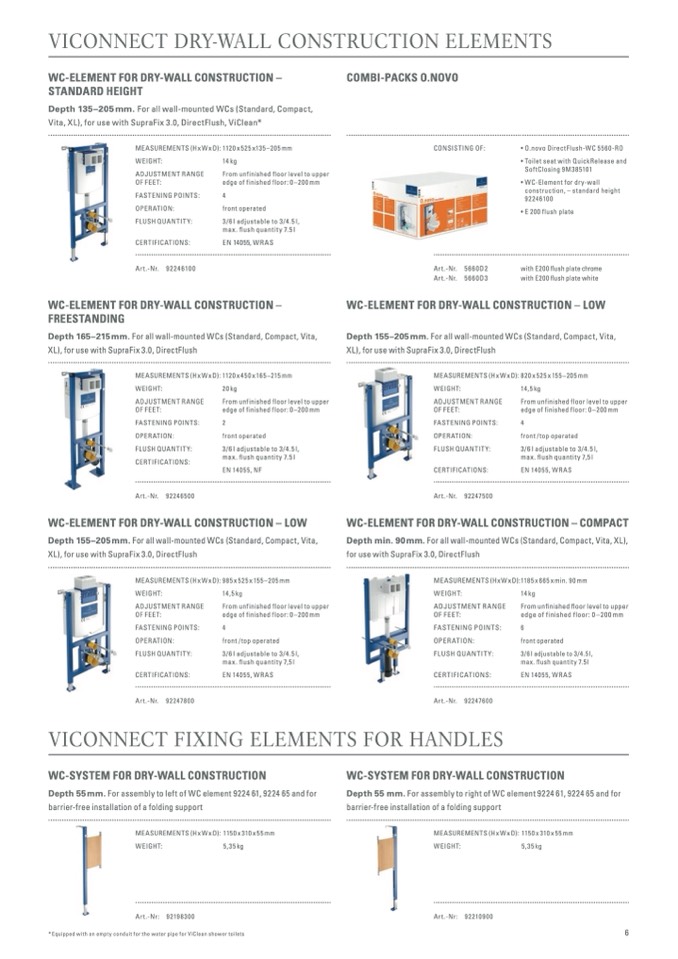

VICONNECT DRY-WALL CONSTRUCTION ELEMENTS
WC-ELEMENT FOR DRY-WALL CONSTRUCTION –
STANDARD HEIGHT
Depth 135–205 mm. For all wall-mounted WCs (Standard, Compact,
Vita, XL), for use with SupraFix 3.0, DirectFlush, ViClean*
COMBI-PACKS O.NOVO
CONSISTING OF:
MEASUREMENTS (HxWxD):
WEIGHT:
ADJUSTMENT RANGE
OFFEET:
FASTENING POINTS:
OPERATION:
FLUSH QUANTITY:
CERTIFICATIONS:
Art.-Nr. 92246100
1120 x 525 x135–205 mm
14 kg
From unfinished floor level to upper
edge of finished floor: 0–200 mm
4
front operated
3/6 l adjustable to 3/4.5 l,
max. flush quantity 7.5 l
EN14055,WRAS
• O.novo DirectFlush-WC 5560-RO
• Toilet seat with QuickRelease and
SoftClosing 9M385101
• WC-Element for dry-wall
construction, – standard height
92246100
• E 200 flush plate
with E200 flush plate chrome
with E200 flush plate white
WC-ELEMENT FOR DRY-WALL CONSTRUCTION –
FREESTANDING
Depth 165–215 mm. For all wall-mounted WCs (Standard, Compact, Vita,
XL), for use with SupraFix 3.0, DirectFlush
WC-ELEMENT FOR DRY-WALL CONSTRUCTION – LOW
Depth 155–205 mm. For all wall-mounted WCs (Standard, Compact, Vita,
XL), for use with SupraFix 3.0, DirectFlush
Art.-Nr.
Art.-Nr.
5660D2
5660D3
MEASUREMENTS (HxWxD):
WEIGHT:
ADJUSTMENT RANGE
OF FEET:
FASTENING POINTS:
OPERATION:
FLUSH QUANTITY:
CERTIFICATIONS:
Art.-Nr. 92246500
1120x450x165–215mm
20 kg
From unfinished floor level to upper
edge of finished floor: 0–200mm
2
front operated
3/6 l adjustable to 3/4.5 l,
max. flush quantity 7.5 l
EN 14055, NF
MEASUREMENTS (HxWxD):
WEIGHT:
ADJUSTMENT RANGE
OF FEET:
FASTENING POINTS:
OPERATION:
FLUSH QUANTITY:
CERTIFICATIONS:
Art.-Nr. 92247500
820x525x155–205mm
14,5 kg
From unfinished floor level to upper
edge of finished floor: 0–200mm
4
front /top operated
3/6 l adjustable to 3/4.5 l,
max. flush quantity 7,5 l
EN 14055, WRAS
WC-ELEMENT FOR DRY-WALL CONSTRUCTION – LOW
Depth 155–205 mm. For all wall-mounted WCs (Standard, Compact, Vita,
XL), for use with SupraFix 3.0, DirectFlush
WC-ELEMENT FOR DRY-WALL CONSTRUCTION – COMPACT
Depth min. 90 mm. For all wall-mounted WCs (Standard, Compact, Vita, XL),
for use with SupraFix 3.0, DirectFlush
MEASUREMENTS (HxWxD):1185x665xmin. 90mm
WEIGHT:
14kg
MEASUREMENTS (HxWxD):
WEIGHT:
ADJUSTMENT RANGE
OF FEET:
FASTENING POINTS:
OPERATION:
FLUSH QUANTITY:
CERTIFICATIONS:
Art.-Nr. 92247800
985x525x155–205mm
14,5kg
From unfinished floor level to upper
edge of finished floor: 0–200mm
4
front /top operated
3/6 l adjustable to 3/4.5 l,
max. flush quantity 7,5l
EN 14055, WRAS
ADJUSTMENT RANGE
OF FEET:
FASTENING POINTS:
OPERATION:
FLUSH QUANTITY:
CERTIFICATIONS:
Art.-Nr. 92247600
From unfinished floor level to upper
edge of finished floor: 0–200mm
6
front operated
3/6 l adjustable to 3/4.5 l,
max. flush quantity 7.5l
EN 14055, WRAS
VICONNECT FIXING ELEMENTS FOR HANDLES
WC-SYSTEM FOR DRY-WALL CONSTRUCTION
Depth 55 mm. For assembly to left of WC element 9224 61, 9224 65 and for
barrier-free installation of a folding support
MEASUREMENTS (HxWxD): 1150x310x55mm
WEIGHT:
5,35 kg
Art.-Nr: 92198300
* Equipped with an empty conduit for the water pipe for ViClean shower toilets
WC-SYSTEM FOR DRY-WALL CONSTRUCTION
Depth 55 mm. For assembly to right of WC element 9224 61, 9224 65 and for
barrier-free installation of a folding support
MEASUREMENTS (HxWxD): 1150x310x55mm
WEIGHT:
5,35 kg
Art.-Nr: 92210900
6
