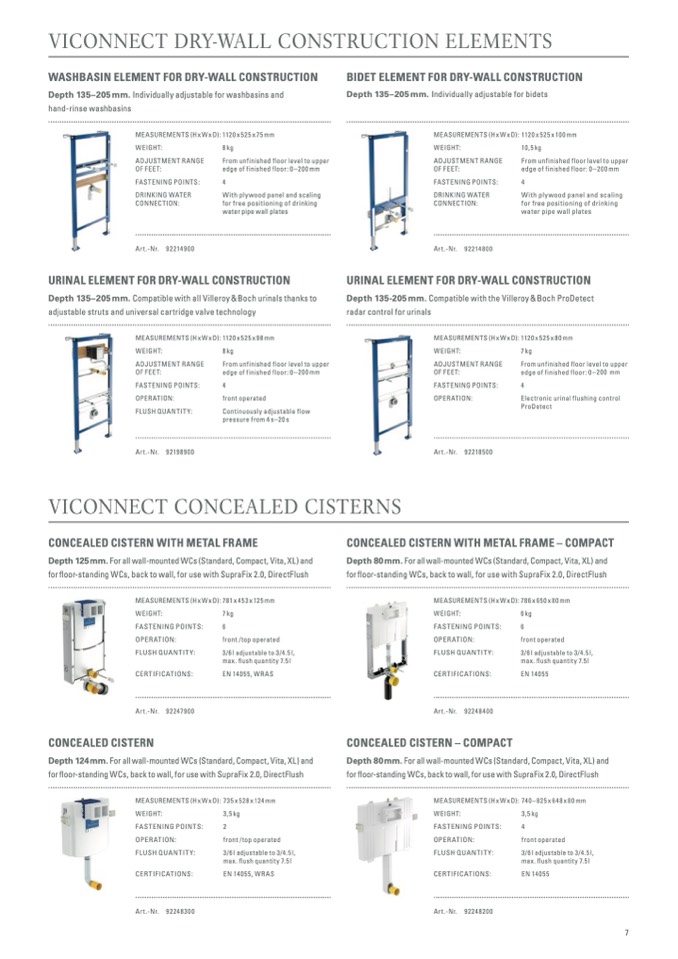

VICONNECT DRY-WALL CONSTRUCTION ELEMENTS

WASHBASIN ELEMENT FOR DRY-WALL CONSTRUCTION

Depth 135–205 mm. Individually adjustable for washbasins and

hand-rinse washbasins

BIDET ELEMENT FOR DRY-WALL CONSTRUCTION

Depth 135–205 mm. Individually adjustable for bidets

MEASUREMENTS (HxWxD):

WEIGHT:

ADJUSTMENT RANGE

OF FEET:

FASTENING POINTS:

DRINKING WATER

CONNECTION:

Art.-Nr. 92214900

1120x525x75mm

8 kg

From unfinished floor level to upper

edge of finished floor: 0–200mm

4

With plywood panel and scaling

for free positioning of drinking

water pipe wall plates

MEASUREMENTS (HxWxD):

WEIGHT:

ADJUSTMENT RANGE

OF FEET:

FASTENING POINTS:

DRINKING WATER

CONNECTION:

Art.-Nr. 92214800

1120x525x100mm

10,5 kg

From unfinished floor level to upper

edge of finished floor: 0–200mm

4

With plywood panel and scaling

for free positioning of drinking

water pipe wall plates

URINAL ELEMENT FOR DRY-WALL CONSTRUCTION

Depth 135–205 mm. Compatible with all Villeroy & Boch urinals thanks to

adjustable struts and universal cartridge valve technology

URINAL ELEMENT FOR DRY-WALL CONSTRUCTION

Depth 135-205 mm. Compatible with the Villeroy & Boch ProDetect

radar control for urinals

MEASUREMENTS (HxWxD):

WEIGHT:

ADJUSTMENT RANGE

OF FEET:

FASTENING POINTS:

OPERATION:

FLUSH QUANTITY:

Art.-Nr. 92198900

1120x525x98mm

8 kg

From unfinished floor level to upper

edge of finished floor: 0–200mm

4

front operated

Continuously adjustable flow

pressure from 4 s–20 s

MEASUREMENTS (HxWxD):

WEIGHT:

ADJUSTMENT RANGE

OF FEET:

FASTENING POINTS:

OPERATION:

Art.-Nr. 92218500

1120x525x80mm

7 kg

From unfinished floor level to upper

edge of finished floor: 0–200 mm

4

Electronic urinal flushing control

ProDetect

VICONNECT CONCEALED CISTERNS

CONCEALED CISTERN WITH METAL FRAME

Depth 125mm. For all wall-mounted WCs (Standard, Compact, Vita, XL) and

for floor-standing WCs, back to wall, for use with SupraFix 2.0, DirectFlush

CONCEALED CISTERN WITH METAL FRAME – COMPACT

Depth 80 mm. For all wall-mounted WCs (Standard, Compact, Vita, XL) and

for floor-standing WCs, back to wall, for use with SupraFix 2.0, DirectFlush

MEASUREMENTS (HxWxD):

WEIGHT:

FASTENING POINTS:

OPERATION:

FLUSH QUANTITY:

CERTIFICATIONS:

Art.-Nr. 92247900

CONCEALED CISTERN

781x453x125mm

7 kg

6

front /top operated

3/6l adjustable to 3/4.5l,

max. flush quantity 7.5 l

EN 14055, WRAS

MEASUREMENTS (HxWxD):

WEIGHT:

FASTENING POINTS:

OPERATION:

FLUSH QUANTITY:

CERTIFICATIONS:

Art.-Nr. 92248400

CONCEALED CISTERN – COMPACT

786x650x80mm

6 kg

6

front operated

3/6l adjustable to 3/4.5l,

max. flush quantity 7.5 l

EN 14055

Depth 124mm. For all wall-mounted WCs (Standard, Compact, Vita, XL) and

for floor-standing WCs, back to wall, for use with SupraFix 2.0, DirectFlush

Depth 80mm. For all wall-mounted WCs (Standard, Compact, Vita, XL) and

for floor-standing WCs, back to wall, for use with SupraFix 2.0, DirectFlush

MEASUREMENTS (HxWxD):

WEIGHT:

FASTENING POINTS:

OPERATION:

FLUSH QUANTITY:

CERTIFICATIONS:

735x528x124mm

3,5 kg

2

front /top operated

3/6l adjustable to 3/4.5l,

max. flush quantity 7.5 l

EN 14055, WRAS

MEASUREMENTS (HxWxD):

WEIGHT:

FASTENING POINTS:

OPERATION:

FLUSH QUANTITY:

CERTIFICATIONS:

740–825x648x80mm

3,5 kg

4

front operated

3/6l adjustable to 3/4.5l,

max. flush quantity 7.5 l

EN 14055

Art.-Nr. 92248300

Art.-Nr. 92248200

7
