Valves

Valves

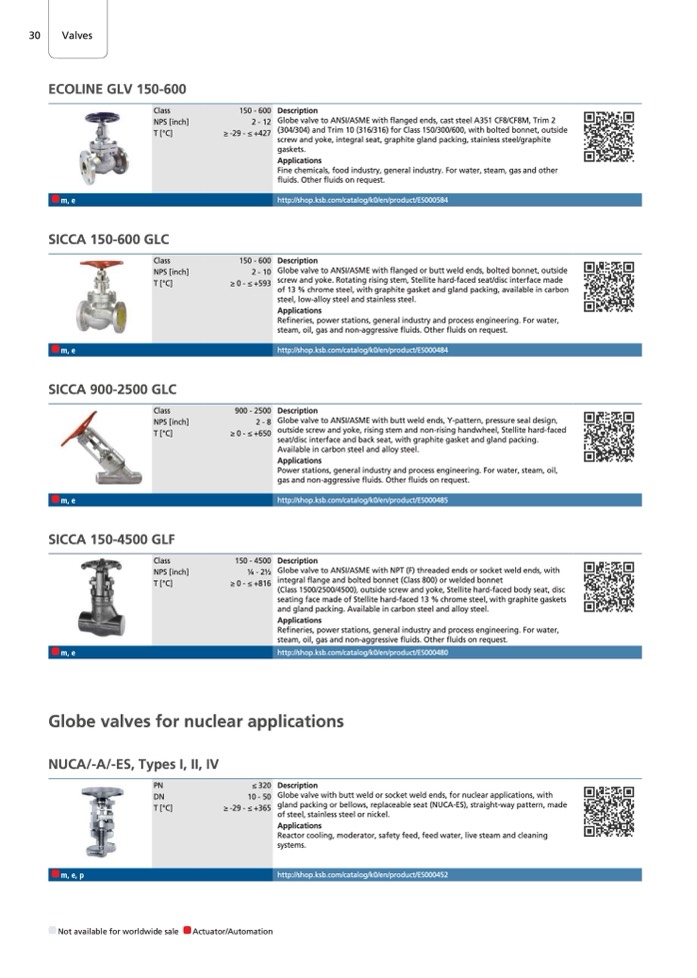

ECOLINE GLV 150-600

Class

NPS [inch]

T [°C]

m, e

SICCA 150-600 GLC

Class

NPS [inch]

T [°C]

m, e

SICCA 900-2500 GLC

Class

NPS [inch]

T [°C]

m, e

SICCA 150-4500 GLF

Class

NPS [inch]

T [°C]

m, e

Globe valves for nuclear

NUCA/-A/-ES, Types I, II, IV

m, e, p

Not available for worldwide sale

Actuator/Automation

PN

DN

T [°C]

≥ -29 -

≤ 320

10 - 50

≤ +365

Description

Globe valve with butt weld or socket weld ends, for nuclear applications, with

gland packing or bellows, replaceable seat (NUCA-ES), straight-way pattern, made

of steel, stainless steel or nickel.

Applications

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000452

150 - 600

2 - 12

≥ -29 - ≤ +427

150 - 600

2 - 10

≥ 0 - ≤ +593

900 - 2500

2 - 8

≥ 0 - ≤ +650

150 - 4500

1⁄4 - 21⁄2

Description

Globe valve to ANSI/ASME with flanged ends, cast steel A351 CF8/CF8M, Trim 2

(304/304) and Trim 10 (316/316) for Class 150/300/600, with bolted bonnet, outside

screw and yoke, integral seat, graphite gland packing, stainless steel/graphite

gaskets.

Applications

Fine chemicals, food industry, general industry. For water, steam, gas and other

fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000584

Description

Globe valve to ANSI/ASME with flanged or butt weld ends, bolted bonnet, outside

screw and yoke. Rotating rising stem, Stellite hard-faced seat/disc interface made

of 13 % chrome steel, with graphite gasket and gland packing, available in carbon

steel, low-alloy steel and stainless steel.

Applications

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000484

Description

Globe valve to ANSI/ASME with butt weld ends, Y-pattern, pressure seal design,

outside screw and yoke, rising stem and non-rising handwheel, Stellite hard-faced

seat/disc interface and back seat, with graphite gasket and gland packing.

Available in carbon steel and alloy steel.

Applications

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000485

Description

Globe valve to ANSI/ASME with NPT (F) threaded ends or socket weld ends, with

integral flange and bolted bonnet (Class 800) or welded bonnet

(Class 1500/2500/4500), outside screw and yoke, Stellite hard-faced body seat, disc

seating face made of Stellite hard-faced 13 % chrome steel, with graphite gaskets

and gland packing. Available in carbon steel and alloy steel.

Applications

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000480

≥ 0 - ≤ +816
