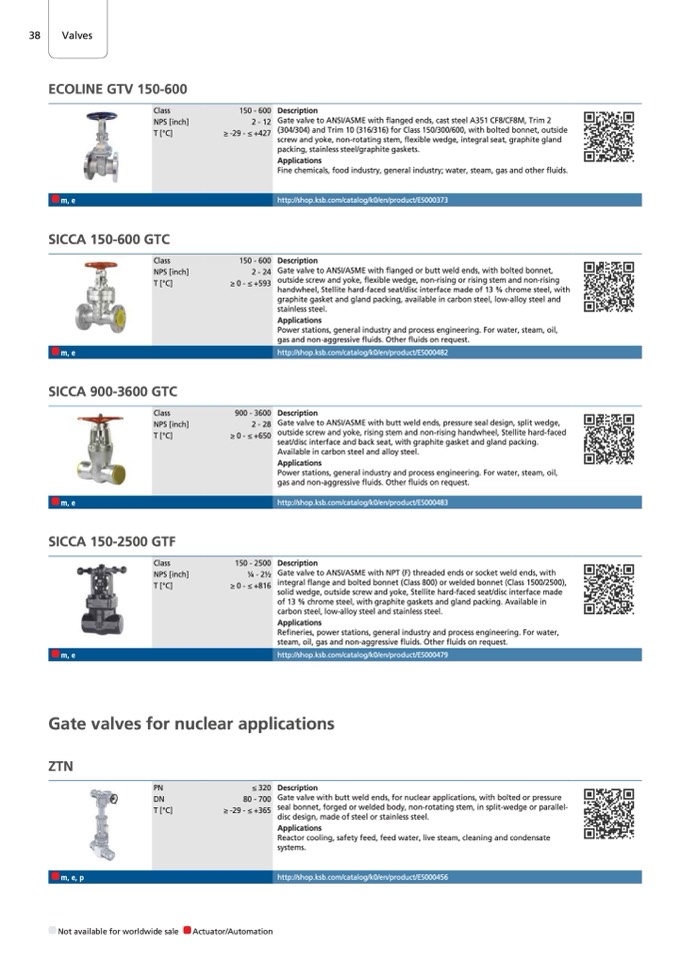

38

Valves

Valves

ECOLINE GTV 150-600

Class

NPS [inch]

T [°C]

m, e

SICCA 150-600 GTC

Class

NPS [inch]

T [°C]

m, e

SICCA 900-3600 GTC

Class

NPS [inch]

T [°C]

m, e

SICCA 150-2500 GTF

Class

NPS [inch]

T [°C]

m, e

Gate valves for nuclear applications

ZTN

m, e, p

Not available for worldwide sale

Actuator/Automation

PN

DN

T [°C]

≤ 320

80 - 700

≥ -29 - ≤ +365

Description

Gate valve with butt weld ends, for nuclear applications, with bolted or pressure

seal bonnet, forged or welded body, non-rotating stem, in split-wedge or parallel-

disc design, made of steel or stainless steel.

Applications

Reactor cooling, safety feed, feed water, live steam, cleaning and condensate

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000456

150 - 600

2 - 12

≥ -29 - ≤ +427

150 - 600

2 - 24

≥ 0 - ≤ +593

900 - 3600

2 - 28

≥ 0 - ≤ +650

150 - 2500

1⁄4 - 21⁄2

≥ 0 - ≤ +816

Description

Gate valve to ANSI/ASME with flanged ends, cast steel A351 CF8/CF8M, Trim 2

(304/304) and Trim 10 (316/316) for Class 150/300/600, with bolted bonnet, outside

screw and yoke, non-rotating stem, flexible wedge, integral seat, graphite gland

packing, stainless steel/graphite gaskets.

Applications

Fine chemicals, food industry, general industry; water, steam, gas and other fluids.

http://shop.ksb.com/catalog/k0/en/product/ES000373

Description

Gate valve to ANSI/ASME with flanged or butt weld ends, with bolted bonnet,

outside screw and yoke, flexible wedge, non‐rising or rising stem and non-rising

handwheel, Stellite hard-faced seat/disc interface made of 13 % chrome steel, with

graphite gasket and gland packing, available in carbon steel, low-alloy steel and

stainless steel.

Applications

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000482

Description

Gate valve to ANSI/ASME with butt weld ends, pressure seal design, split wedge,

outside screw and yoke, rising stem and non-rising handwheel, Stellite hard-faced

seat/disc interface and back seat, with graphite gasket and gland packing.

Available in carbon steel and alloy steel.

Applications

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000483

Description

Gate valve to ANSI/ASME with NPT (F) threaded ends or socket weld ends, with

integral flange and bolted bonnet (Class 800) or welded bonnet (Class 1500/2500),

solid wedge, outside screw and yoke, Stellite hard-faced seat/disc interface made

of 13 % chrome steel, with graphite gaskets and gland packing. Available in

carbon steel, low-alloy steel and stainless steel.

Applications

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000479
