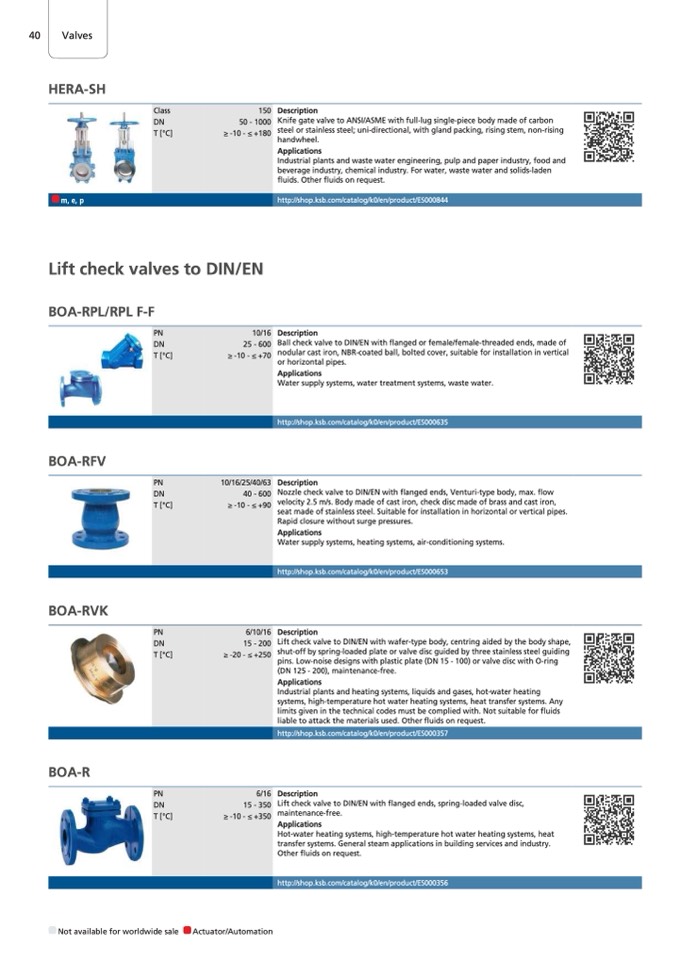

40
Valves
Valves
HERA-SH
m, e, p
Class
DN
T [°C]
150
50 - 1000
≥ -10 - ≤ +180
Description
Knife gate valve to ANSI/ASME with full-lug single-piece body made of carbon
steel or stainless steel; uni-directional, with gland packing, rising stem, non-rising
handwheel.
Applications
Industrial plants and waste water engineering, pulp and paper industry, food and
beverage industry, chemical industry. For water, waste water and solids-laden
fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000844
Description
Ball check valve to DIN/EN with flanged or female/female-threaded ends, made of
nodular cast iron, NBR-coated ball, bolted cover, suitable for installation in vertical
or horizontal pipes.
Applications
Water supply systems, water treatment systems, waste water.
http://shop.ksb.com/catalog/k0/en/product/ES000635
Description
Nozzle check valve to DIN/EN with flanged ends, Venturi-type body, max. flow
velocity 2.5 m/s. Body made of cast iron, check disc made of brass and cast iron,
seat made of stainless steel. Suitable for installation in horizontal or vertical pipes.
Rapid closure without surge pressures.
Applications
Water supply systems, heating systems, air-conditioning systems.
http://shop.ksb.com/catalog/k0/en/product/ES000653
Description
Lift check valve to DIN/EN with wafer-type body, centring aided by the body shape,
shut-off by spring-loaded plate or valve disc guided by three stainless steel guiding
pins. Low-noise designs with plastic plate (DN 15 - 100) or valve disc with O-ring
(DN 125 - 200), maintenance-free.
Applications
Industrial plants and heating systems, liquids and gases, hot-water heating
systems, high-temperature hot water heating systems, heat transfer systems. Any
limits given in the technical codes must be complied with. Not suitable for fluids
liable to attack the materials used. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000357
Description
Lift check valve to DIN/EN with flanged ends, spring-loaded valve disc,
maintenance-free.
Applications
Hot-water heating systems, high-temperature hot water heating systems, heat
transfer systems. General steam applications in building services and industry.
Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000356
Lift check valves to DIN/EN
BOA-RPL/RPL F-F
BOA-RFV
BOA-RVK
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
10/16
25 - 600
≥ -10 - ≤ +70
10/16/25/40/63
40 - 600
≥ -10 - ≤ +90
6/10/16
15 - 200
≥ -20 - ≤ +250
6/16
15 - 350
≥ -10 - ≤ +350
BOA-R
Not available for worldwide sale
Actuator/Automation
