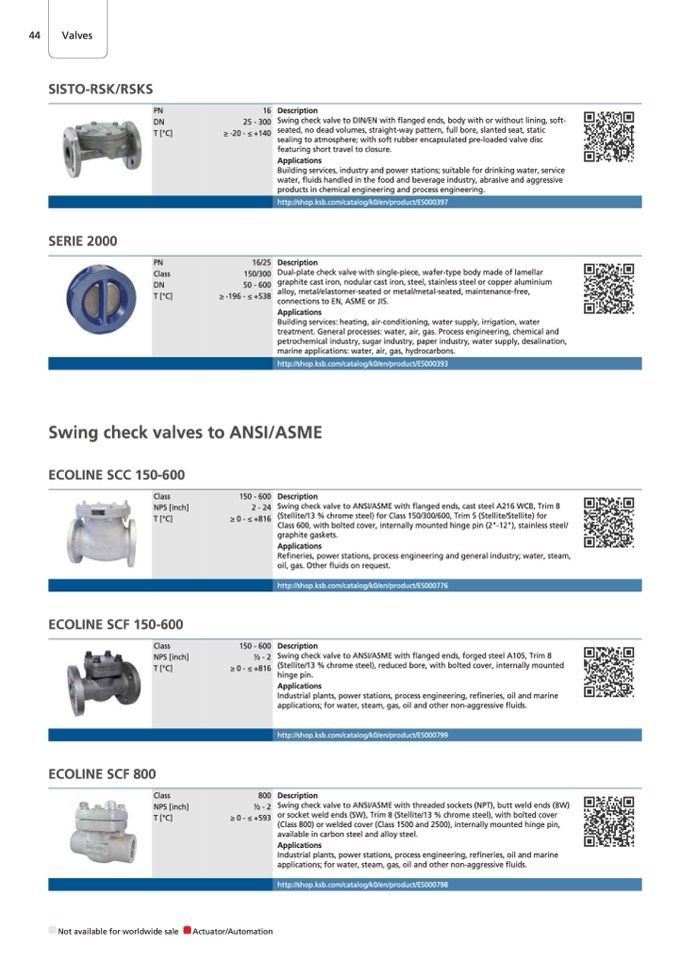

44

Valves

Valves

SISTO-RSK/RSKS

SERIE 2000

PN

DN

T [°C]

PN

Class

DN

T [°C]

≥ -20

16

25 - 300

- ≤ +140

16/25

150/300

50 - 600

- ≤ +538

Description

Swing check valve to DIN/EN with flanged ends, body with or without lining, soft-

seated, no dead volumes, straight-way pattern, full bore, slanted seat, static

sealing to atmosphere; with soft rubber encapsulated pre-loaded valve disc

featuring short travel to closure.

Applications

Building services, industry and power stations; suitable for drinking water, service

water, fluids handled in the food and beverage industry, abrasive and aggressive

products in chemical engineering and process engineering.

http://shop.ksb.com/catalog/k0/en/product/ES000397

Description

Dual-plate check valve with single-piece, wafer-type body made of lamellar

graphite cast iron, nodular cast iron, steel, stainless steel or copper aluminium

alloy, metal/elastomer-seated or metal/metal-seated, maintenance-free,

connections to EN, ASME or JIS.

Applications

Building services: heating, air-conditioning, water supply, irrigation, water

treatment. General processes: water, air, gas. Process engineering, chemical and

petrochemical industry, sugar industry, paper industry, water supply, desalination,

marine applications: water, air, gas, hydrocarbons.

http://shop.ksb.com/catalog/k0/en/product/ES000393

Swing check valves to ANSI/ASME

ECOLINE SCC 150-600

Class

NPS [inch]

T [°C]

ECOLINE SCF 150-600

Class

NPS [inch]

T [°C]

ECOLINE SCF 800

Class

NPS [inch]

T [°C]

150 - 600

2 - 24

≥ 0 - ≤ +816

150 - 600

1⁄2- 2

≥ 0 - ≤ +816

800

1⁄2- 2

≥ 0 - ≤ +593

Description

Swing check valve to ANSI/ASME with flanged ends, cast steel A216 WCB, Trim 8

(Stellite/13 % chrome steel) for Class 150/300/600, Trim 5 (Stellite/Stellite) for

Class 600, with bolted cover, internally mounted hinge pin (2"-12"), stainless steel/

graphite gaskets.

Applications

Refineries, power stations, process engineering and general industry; water, steam,

oil, gas. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000776

Description

Swing check valve to ANSI/ASME with flanged ends, forged steel A105, Trim 8

(Stellite/13 % chrome steel), reduced bore, with bolted cover, internally mounted

hinge pin.

Applications

Industrial plants, power stations, process engineering, refineries, oil and marine

applications; for water, steam, gas, oil and other non-aggressive fluids.

http://shop.ksb.com/catalog/k0/en/product/ES000799

Description

Swing check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW)

or socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted cover

(Class 800) or welded cover (Class 1500 and 2500), internally mounted hinge pin,

available in carbon steel and alloy steel.

Applications

Industrial plants, power stations, process engineering, refineries, oil and marine

applications; for water, steam, gas, oil and other non-aggressive fluids.

Not available for worldwide sale

Actuator/Automation

≥ -196

http://shop.ksb.com/catalog/k0/en/product/ES000798
