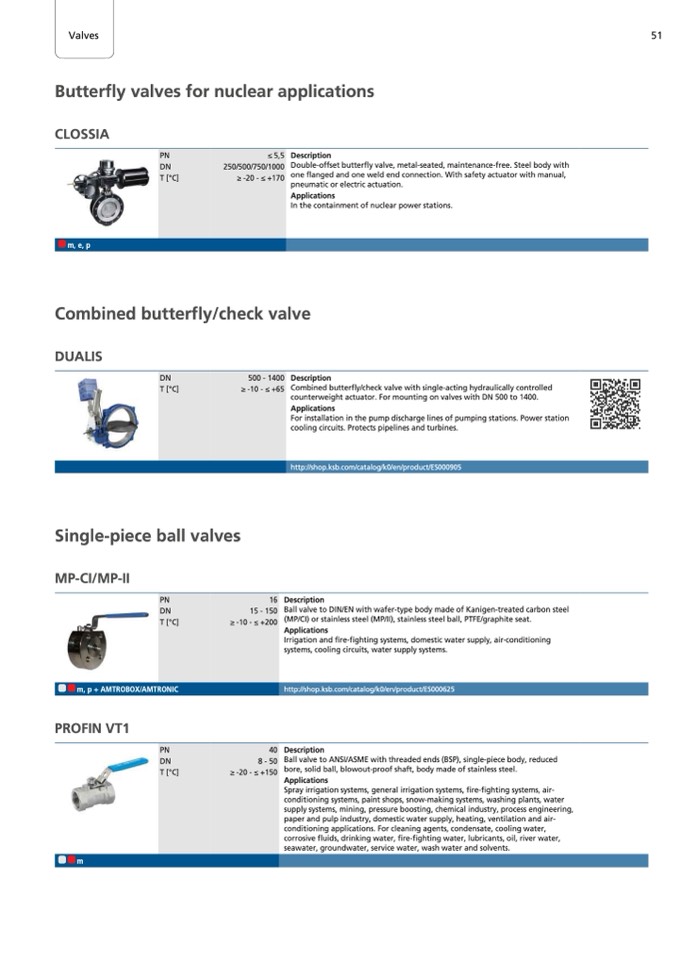

Valves
51
Valves
Butterfly valves for nuclear applications
CLOSSIA
Description
Double-offset butterfly valve, metal-seated, maintenance-free. Steel body with
one flanged and one weld end connection. With safety actuator with manual,
pneumatic or electric actuation.
Applications
In the containment of nuclear power stations.
Combined butterfly/check valve
DUALIS
PN
DN
T [°C]
≤ 5,5
250/500/750/1000
≥ -20 - ≤ +170
m, e, p
DN
500 - 1400
T [°C]
≥ -10 - ≤ +65
Description
Combined butterfly/check valve with single-acting hydraulically controlled
counterweight actuator. For mounting on valves with DN 500 to 1400.
Applications
For installation in the pump discharge lines of pumping stations. Power station
cooling circuits. Protects pipelines and turbines.
Single-piece ball valves
MP-CI/MP-II
PROFIN VT1
Description
Ball valve to DIN/EN with wafer-type body made of Kanigen-treated carbon steel
(MP/CI) or stainless steel (MP/II), stainless steel ball, PTFE/graphite seat.
Applications
Irrigation and fire-fighting systems, domestic water supply, air-conditioning
systems, cooling circuits, water supply systems.
Description
Ball valve to ANSI/ASME with threaded ends (BSP), single-piece body, reduced
bore, solid ball, blowout-proof shaft, body made of stainless steel.
Applications
Spray irrigation systems, general irrigation systems, fire-fighting systems, air-
conditioning systems, paint shops, snow-making systems, washing plants, water
supply systems, mining, pressure boosting, chemical industry, process engineering,
paper and pulp industry, domestic water supply, heating, ventilation and air-
conditioning applications. For cleaning agents, condensate, cooling water,
corrosive fluids, drinking water, fire-fighting water, lubricants, oil, river water,
seawater, groundwater, service water, wash water and solvents.
http://shop.ksb.com/catalog/k0/en/product/ES000905
PN
DN
T [°C]
16
15 - 150
≥ -10 - ≤ +200
m, p + AMTROBOX/AMTRONIC
http://shop.ksb.com/catalog/k0/en/product/ES000625
PN
DN
T [°C]
40
8 - 50
≥ -20 - ≤ +150
m
