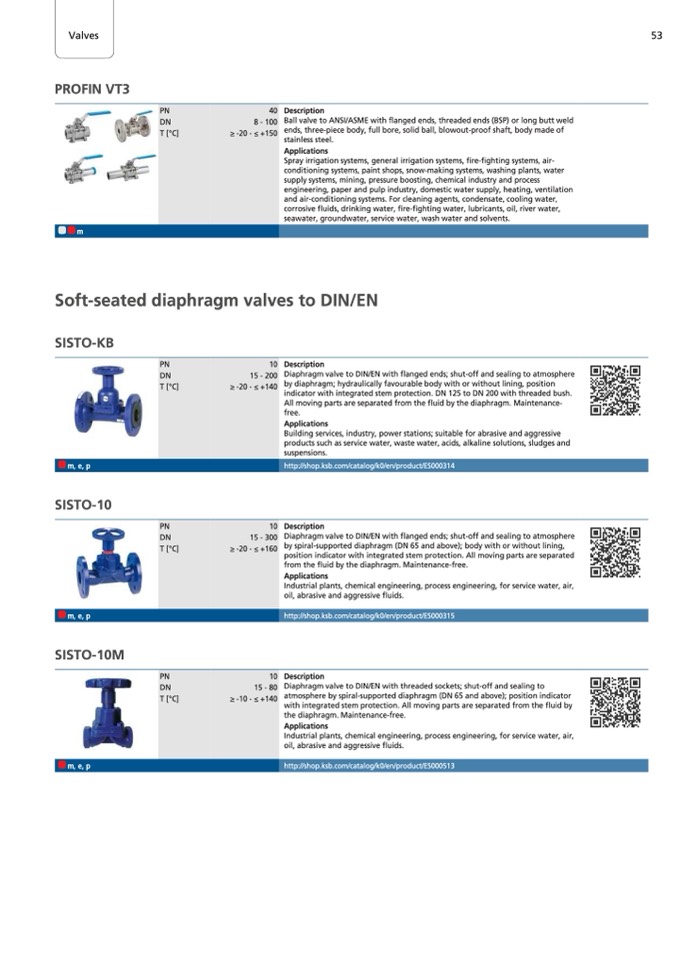

Valves
Valves
PROFIN VT3
m
53
PN
DN
T [°C]
40
8 - 100
≥ -20 - ≤ +150
Description
Ball valve to ANSI/ASME with flanged ends, threaded ends (BSP) or long butt weld
ends, three-piece body, full bore, solid ball, blowout-proof shaft, body made of
stainless steel.
Applications
Spray irrigation systems, general irrigation systems, fire-fighting systems, air-
conditioning systems, paint shops, snow-making systems, washing plants, water
supply systems, mining, pressure boosting, chemical industry and process
engineering, paper and pulp industry, domestic water supply, heating, ventilation
and air-conditioning systems. For cleaning agents, condensate, cooling water,
corrosive fluids, drinking water, fire-fighting water, lubricants, oil, river water,
seawater, groundwater, service water, wash water and solvents.
Soft-seated diaphragm valves to DIN/EN
SISTO-KB
m, e, p
SISTO-10
m, e, p
SISTO-10M
m, e, p
≥ -20
≥ -10
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
≥ -20
10
15 - 200
- ≤ +140
10
15 - 300
- ≤ +160
10
15 - 80
- ≤ +140
Description
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by diaphragm; hydraulically favourable body with or without lining, position
indicator with integrated stem protection. DN 125 to DN 200 with threaded bush.
All moving parts are separated from the fluid by the diaphragm. Maintenance-
free.
Applications
Building services, industry, power stations; suitable for abrasive and aggressive
products such as service water, waste water, acids, alkaline solutions, sludges and
suspensions.
http://shop.ksb.com/catalog/k0/en/product/ES000314
Description
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by spiral-supported diaphragm (DN 65 and above); body with or without lining,
position indicator with integrated stem protection. All moving parts are separated
from the fluid by the diaphragm. Maintenance-free.
Applications
Industrial plants, chemical engineering, process engineering, for service water, air,
oil, abrasive and aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000315
Description
Diaphragm valve to DIN/EN with threaded sockets; shut-off and sealing to
atmosphere by spiral-supported diaphragm (DN 65 and above); position indicator
with integrated stem protection. All moving parts are separated from the fluid by
the diaphragm. Maintenance-free.
Applications
Industrial plants, chemical engineering, process engineering, for service water, air,
oil, abrasive and aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000513
