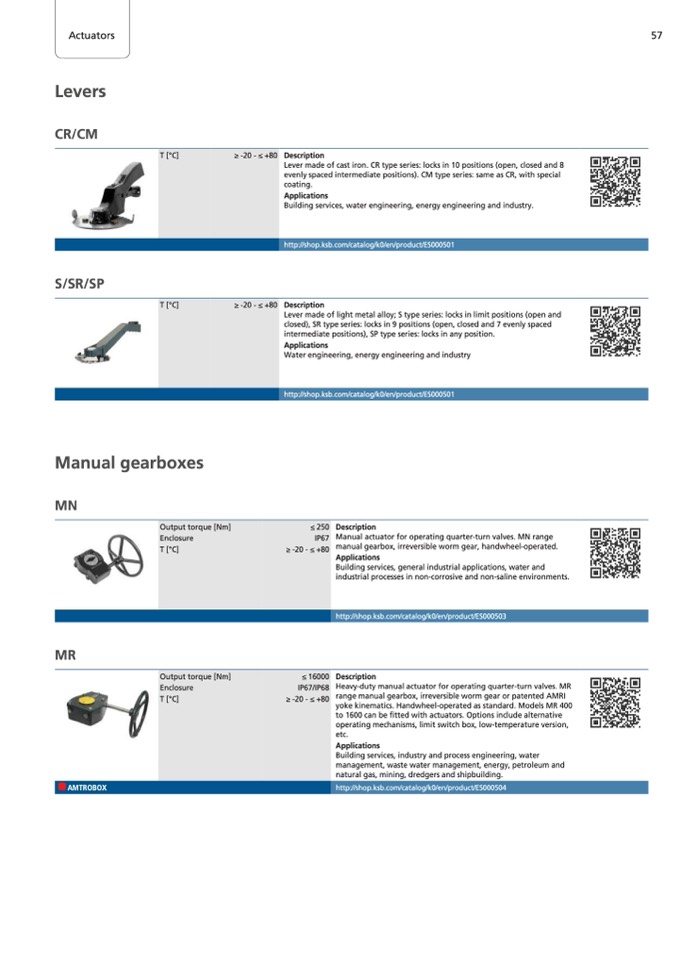

Actuators

Actuators

Levers

CR/CM

S/SR/SP

57

Manual gearboxes

MN

MR

AMTROBOX

≤ 250

≥ -20 - ≤ +80

T [°C]

T [°C]

≥ -20 - ≤ +80

≥ -20 - ≤ +80

Description

Lever made of cast iron. CR type series: locks in 10 positions (open, closed and 8

evenly spaced intermediate positions). CM type series: same as CR, with special

coating.

Applications

Building services, water engineering, energy engineering and industry.

http://shop.ksb.com/catalog/k0/en/product/ES000501

Description

Lever made of light metal alloy; S type series: locks in limit positions (open and

closed), SR type series: locks in 9 positions (open, closed and 7 evenly spaced

intermediate positions), SP type series: locks in any position.

Applications

Water engineering, energy engineering and industry

http://shop.ksb.com/catalog/k0/en/product/ES000501

Description

Manual actuator for operating quarter-turn valves. MN range

manual gearbox, irreversible worm gear, handwheel-operated.

Applications

Building services, general industrial applications, water and

industrial processes in non-corrosive and non-saline environments.

http://shop.ksb.com/catalog/k0/en/product/ES000503

Description

Heavy-duty manual actuator for operating quarter-turn valves. MR

range manual gearbox, irreversible worm gear or patented AMRI

yoke kinematics. Handwheel-operated as standard. Models MR 400

to 1600 can be fitted with actuators. Options include alternative

operating mechanisms, limit switch box, low-temperature version,

etc.

Applications

Building services, industry and process engineering, water

management, waste water management, energy, petroleum and

natural gas, mining, dredgers and shipbuilding.

http://shop.ksb.com/catalog/k0/en/product/ES000504

Output torque [Nm]

Enclosure

IP67

T [°C]

Output torque [Nm]

Enclosure

IP67/IP68

T [°C]

≤ 16000

≥ -20 - ≤ +80
