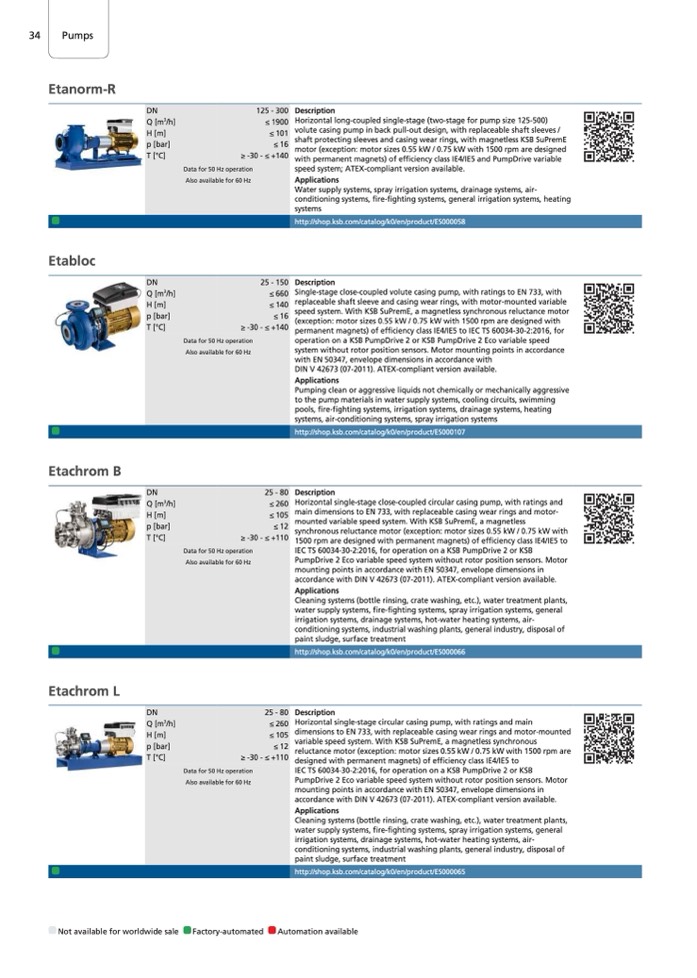

34

Pumps

Pumps

Etanorm-R

Etabloc

Etachrom B

Etachrom L

Not available for worldwide sale

Factory-automated

Automation available

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

125 - 300

≤ 1900

≤ 101

≤ 16

≥ -30 - ≤ +140

Description

Horizontal long-coupled single-stage (two-stage for pump size 125-500)

volute casing pump in back pull-out design, with replaceable shaft sleeves /

shaft protecting sleeves and casing wear rings, with magnetless KSB SuPremE

motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed

with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable

speed system; ATEX-compliant version available.

Applications

Water supply systems, spray irrigation systems, drainage systems, air-

conditioning systems, fire-fighting systems, general irrigation systems, heating

systems

http://shop.ksb.com/catalog/k0/en/product/ES000058

Description

Single-stage close-coupled volute casing pump, with ratings to EN 733, with

replaceable shaft sleeve and casing wear rings, with motor-mounted variable

speed system. With KSB SuPremE, a magnetless synchronous reluctance motor

(exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with

permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for

operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed

system without rotor position sensors. Motor mounting points in accordance

with EN 50347, envelope dimensions in accordance with

DIN V 42673 (07-2011). ATEX-compliant version available.

Applications

Pumping clean or aggressive liquids not chemically or mechanically aggressive

to the pump materials in water supply systems, cooling circuits, swimming

pools, fire-fighting systems, irrigation systems, drainage systems, heating

systems, air-conditioning systems, spray irrigation systems

http://shop.ksb.com/catalog/k0/en/product/ES000107

Description

Horizontal single-stage close-coupled circular casing pump, with ratings and

main dimensions to EN 733, with replaceable casing wear rings and motor-

mounted variable speed system. With KSB SuPremE, a magnetless

synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with

1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to

IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB

PumpDrive 2 Eco variable speed system without rotor position sensors. Motor

mounting points in accordance with EN 50347, envelope dimensions in

accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Applications

Cleaning systems (bottle rinsing, crate washing, etc.), water treatment plants,

water supply systems, fire-fighting systems, spray irrigation systems, general

irrigation systems, drainage systems, hot-water heating systems, air-

conditioning systems, industrial washing plants, general industry, disposal of

paint sludge, surface treatment

http://shop.ksb.com/catalog/k0/en/product/ES000066

Description

Horizontal single-stage circular casing pump, with ratings and main

dimensions to EN 733, with replaceable casing wear rings and motor-mounted

variable speed system. With KSB SuPremE, a magnetless synchronous

reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are

designed with permanent magnets) of efficiency class IE4/IE5 to

IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB

PumpDrive 2 Eco variable speed system without rotor position sensors. Motor

mounting points in accordance with EN 50347, envelope dimensions in

accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Applications

Cleaning systems (bottle rinsing, crate washing, etc.), water treatment plants,

water supply systems, fire-fighting systems, spray irrigation systems, general

irrigation systems, drainage systems, hot-water heating systems, air-

conditioning systems, industrial washing plants, general industry, disposal of

paint sludge, surface treatment

http://shop.ksb.com/catalog/k0/en/product/ES000065

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

≥ -30 -

Data for 50 Hz operation

Also available for 60 Hz

25 - 80

≤ 260

≤ 105

≤ 12

≤ +110

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

≥ -30 -

Data for 50 Hz operation

Also available for 60 Hz

25 - 80

≤ 260

≤ 105

≤ 12

≤ +110

Data for 50 Hz operation

Also available for 60 Hz

≥ -30 -

Data for 50 Hz operation

Also available for 60 Hz

25 - 150

≤ 660

≤ 140

≤ 16

≤ +140
