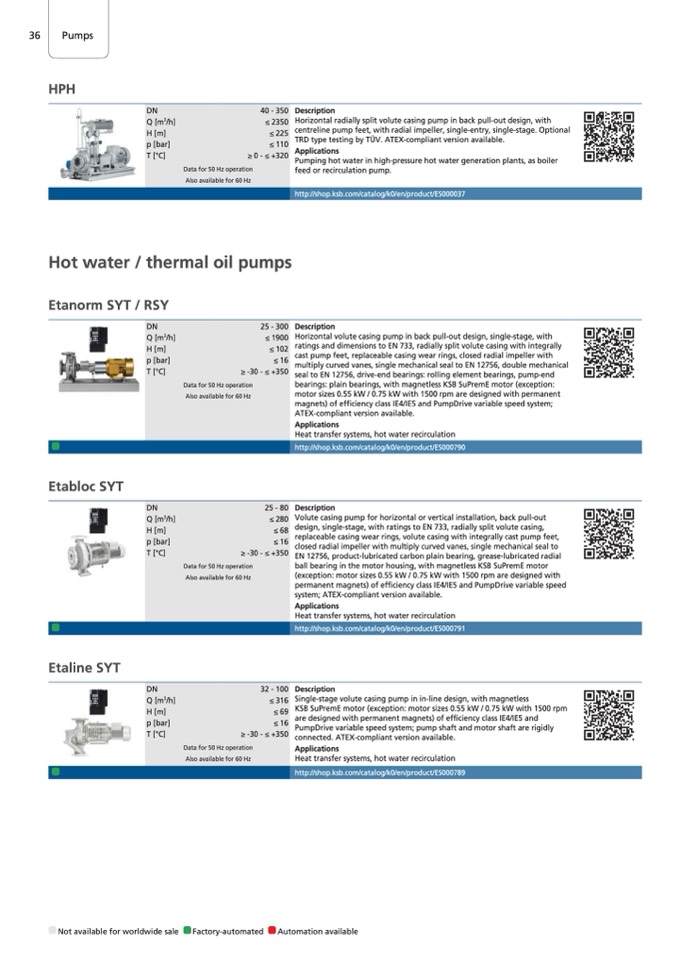

36
Pumps
Pumps
HPH
Etabloc SYT
Etaline SYT
Not available for worldwide sale
Factory-automated
Automation available
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
40 - 350
≤ 2350
≤ 225
≤ 110
≥ 0 - ≤ +320
Data for 50 Hz operation
Also available for 60 Hz
Description
Horizontal radially split volute casing pump in back pull-out design, with
centreline pump feet, with radial impeller, single-entry, single-stage. Optional
TRD type testing by TÜV. ATEX-compliant version available.
Applications
Pumping hot water in high-pressure hot water generation plants, as boiler
feed or recirculation pump.
http://shop.ksb.com/catalog/k0/en/product/ES000037
Description
Horizontal volute casing pump in back pull-out design, single-stage, with
ratings and dimensions to EN 733, radially split volute casing with integrally
cast pump feet, replaceable casing wear rings, closed radial impeller with
multiply curved vanes, single mechanical seal to EN 12756, double mechanical
seal to EN 12756, drive-end bearings: rolling element bearings, pump-end
bearings: plain bearings, with magnetless KSB SuPremE motor (exception:
motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent
magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system;
ATEX-compliant version available.
Applications
Heat transfer systems, hot water recirculation
http://shop.ksb.com/catalog/k0/en/product/ES000790
Description
Volute casing pump for horizontal or vertical installation, back pull-out
design, single-stage, with ratings to EN 733, radially split volute casing,
replaceable casing wear rings, volute casing with integrally cast pump feet,
closed radial impeller with multiply curved vanes, single mechanical seal to
EN 12756, product-lubricated carbon plain bearing, grease-lubricated radial
ball bearing in the motor housing, with magnetless KSB SuPremE motor
(exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with
permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed
system; ATEX-compliant version available.
Applications
Heat transfer systems, hot water recirculation
http://shop.ksb.com/catalog/k0/en/product/ES000791
Description
Single-stage volute casing pump in in-line design, with magnetless
KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm
are designed with permanent magnets) of efficiency class IE4/IE5 and
PumpDrive variable speed system; pump shaft and motor shaft are rigidly
connected. ATEX-compliant version available.
Applications
Heat transfer systems, hot water recirculation
http://shop.ksb.com/catalog/k0/en/product/ES000789
Hot water / thermal oil pumps
Etanorm SYT / RSY
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
≥ -30
Data for 50 Hz operation
Also available for 60 Hz
25 - 300
≤ 1900
≤ 102
≤ 16
- ≤ +350
25 - 80
≤ 280
≤ 68
≤ 16
- ≤ +350
32 - 100
≤ 316
≤ 69
≤ 16
- ≤ +350
≥ -30
Data for 50 Hz operation
Also available for 60 Hz
≥ -30
Data for 50 Hz operation
Also available for 60 Hz
