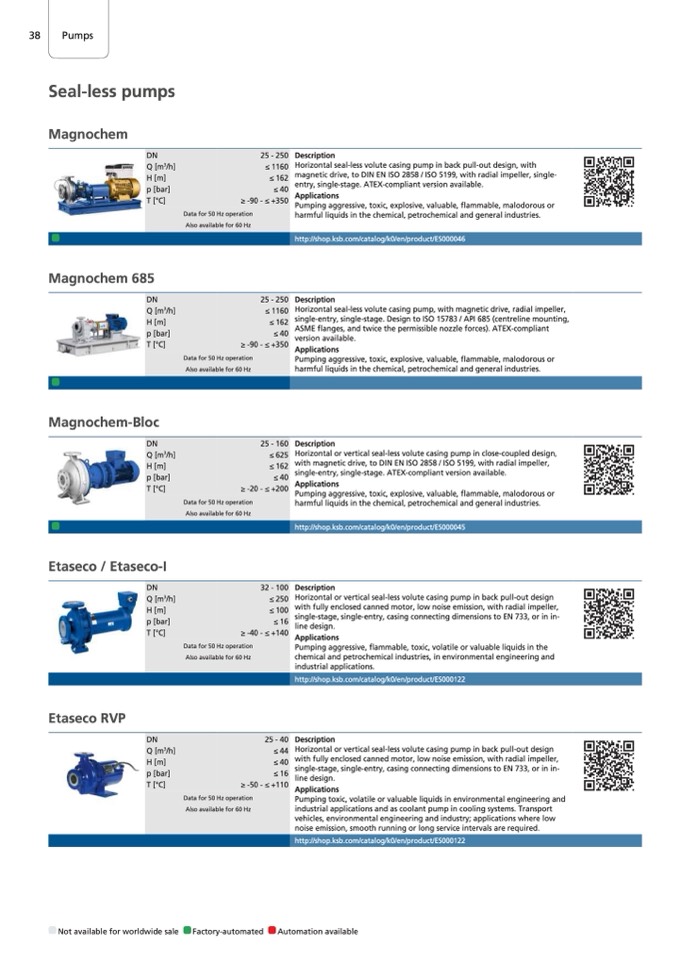

38

Pumps

Pumps

Seal-less pumps

Magnochem

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

Magnochem 685

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

Magnochem-Bloc

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

Etaseco / Etaseco-I

Etaseco RVP

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

25 - 250

≤ 1160

≤ 162

≤ 40

≥ -90 - ≤ +350

Data for 50 Hz operation

Also available for 60 Hz

25 - 250

≤ 1160

≤ 162

≤ 40

≥ -90 - ≤ +350

Data for 50 Hz operation

Also available for 60 Hz

25 - 160

≤ 625

≤ 162

≤ 40

≥ -20 - ≤ +200

Data for 50 Hz operation

Also available for 60 Hz

32 - 100

≤ 250

≤ 100

≤ 16

≥ -40 - ≤ +140

Data for 50 Hz operation

Also available for 60 Hz

25 - 40

≤ 44

≤ 40

≤ 16

≥ -50 - ≤ +110

Data for 50 Hz operation

Also available for 60 Hz

Description

Horizontal seal-less volute casing pump in back pull-out design, with

magnetic drive, to DIN EN ISO 2858 / ISO 5199, with radial impeller, single-

entry, single-stage. ATEX-compliant version available.

Applications

Pumping aggressive, toxic, explosive, valuable, flammable, malodorous or

harmful liquids in the chemical, petrochemical and general industries.

http://shop.ksb.com/catalog/k0/en/product/ES000046

Description

Horizontal seal-less volute casing pump, with magnetic drive, radial impeller,

single-entry, single-stage. Design to ISO 15783 / API 685 (centreline mounting,

ASME flanges, and twice the permissible nozzle forces). ATEX-compliant

version available.

Applications

Pumping aggressive, toxic, explosive, valuable, flammable, malodorous or

harmful liquids in the chemical, petrochemical and general industries.

Description

Horizontal or vertical seal-less volute casing pump in close-coupled design,

with magnetic drive, to DIN EN ISO 2858 / ISO 5199, with radial impeller,

single-entry, single-stage. ATEX-compliant version available.

Applications

Pumping aggressive, toxic, explosive, valuable, flammable, malodorous or

harmful liquids in the chemical, petrochemical and general industries.

http://shop.ksb.com/catalog/k0/en/product/ES000045

Description

Horizontal or vertical seal-less volute casing pump in back pull-out design

with fully enclosed canned motor, low noise emission, with radial impeller,

single-stage, single-entry, casing connecting dimensions to EN 733, or in in-

line design.

Applications

Pumping aggressive, flammable, toxic, volatile or valuable liquids in the

chemical and petrochemical industries, in environmental engineering and

industrial applications.

http://shop.ksb.com/catalog/k0/en/product/ES000122

Description

Horizontal or vertical seal-less volute casing pump in back pull-out design

with fully enclosed canned motor, low noise emission, with radial impeller,

single-stage, single-entry, casing connecting dimensions to EN 733, or in in-

line design.

Applications

Pumping toxic, volatile or valuable liquids in environmental engineering and

industrial applications and as coolant pump in cooling systems. Transport

vehicles, environmental engineering and industry; applications where low

noise emission, smooth running or long service intervals are required.

http://shop.ksb.com/catalog/k0/en/product/ES000122

Not available for worldwide sale

Factory-automated

Automation available
