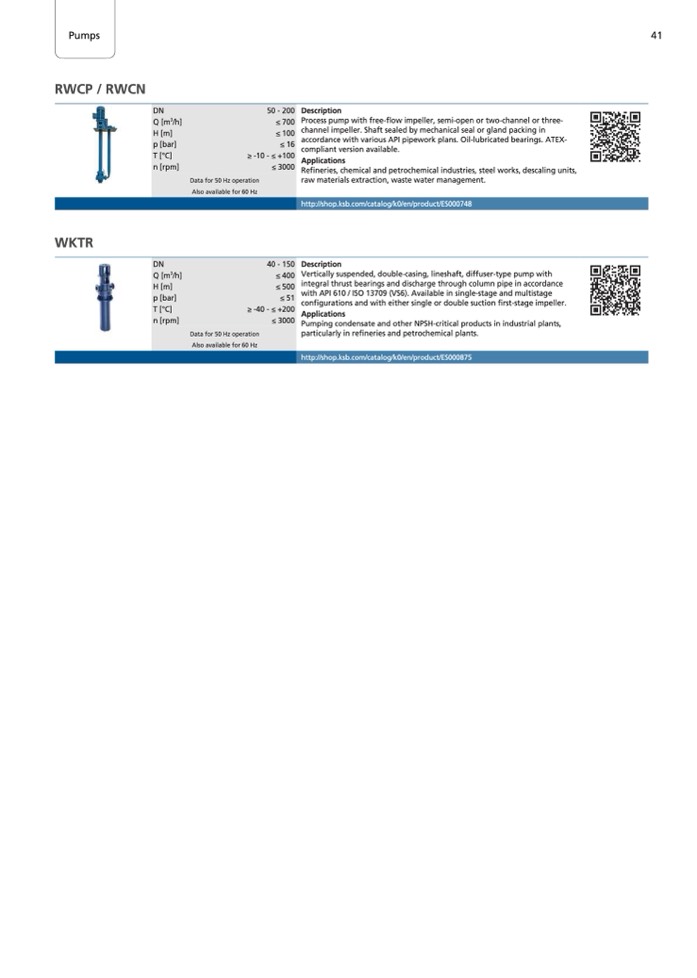

Pumps

Pumps

RWCP / RWCN

WKTR

41

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

50 - 200

≤ 700

≤ 100

≤ 16

≥ -10 - ≤ +100

≤ 3000

Data for 50 Hz operation

Also available for 60 Hz

40 - 150

≤ 400

≤ 500

≤ 51

≥ -40 - ≤ +200

≤ 3000

Data for 50 Hz operation

Also available for 60 Hz

Description

Process pump with free-flow impeller, semi-open or two-channel or three-

channel impeller. Shaft sealed by mechanical seal or gland packing in

accordance with various API pipework plans. Oil-lubricated bearings. ATEX-

compliant version available.

Applications

Refineries, chemical and petrochemical industries, steel works, descaling units,

raw materials extraction, waste water management.

http://shop.ksb.com/catalog/k0/en/product/ES000748

Description

Vertically suspended, double-casing, lineshaft, diffuser-type pump with

integral thrust bearings and discharge through column pipe in accordance

with API 610 / ISO 13709 (VS6). Available in single-stage and multistage

configurations and with either single or double suction first-stage impeller.

Applications

Pumping condensate and other NPSH-critical products in industrial plants,

particularly in refineries and petrochemical plants.

http://shop.ksb.com/catalog/k0/en/product/ES000875
