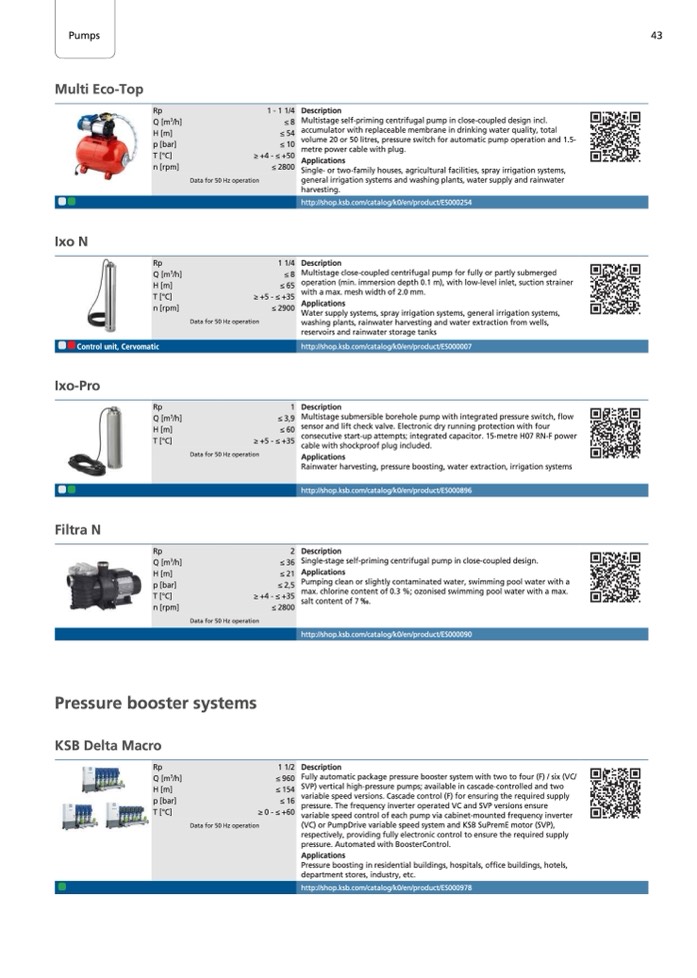

Pumps

Pumps

Multi Eco-Top

Ixo N

43

Control unit, Cervomatic

Ixo-Pro

Filtra N

Rp

Q [m

3

/h]

H [m]

T [°C]

Rp

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

Rp

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

Rp

Q [m

3

/h]

H [m]

T [°C]

n [rpm]

1 - 1 1/4

≤8

≤ 54

≤ 10

≥ +4 - ≤ +50

≤ 2800

Data for 50 Hz operation

1 1/4

≤8

≤ 65

≥ +5 - ≤ +35

≤ 2900

Data for 50 Hz operation

1

≤ 3,9

≤ 60

≥ +5 - ≤ +35

Data for 50 Hz operation

2

≤ 36

≤ 21

≤ 2,5

≥ +4 - ≤ +35

≤ 2800

Description

Multistage self-priming centrifugal pump in close-coupled design incl.

accumulator with replaceable membrane in drinking water quality, total

volume 20 or 50 litres, pressure switch for automatic pump operation and 1.5-

metre power cable with plug.

Applications

Single- or two-family houses, agricultural facilities, spray irrigation systems,

general irrigation systems and washing plants, water supply and rainwater

harvesting.

http://shop.ksb.com/catalog/k0/en/product/ES000254

Description

Multistage close-coupled centrifugal pump for fully or partly submerged

operation (min. immersion depth 0.1 m), with low-level inlet, suction strainer

with a max. mesh width of 2.0 mm.

Applications

Water supply systems, spray irrigation systems, general irrigation systems,

washing plants, rainwater harvesting and water extraction from wells,

reservoirs and rainwater storage tanks

http://shop.ksb.com/catalog/k0/en/product/ES000007

Description

Multistage submersible borehole pump with integrated pressure switch, flow

sensor and lift check valve. Electronic dry running protection with four

consecutive start-up attempts; integrated capacitor. 15-metre H07 RN-F power

cable with shockproof plug included.

Applications

Rainwater harvesting, pressure boosting, water extraction, irrigation systems

http://shop.ksb.com/catalog/k0/en/product/ES000896

Description

Single-stage self-priming centrifugal pump in close-coupled design.

Applications

Pumping clean or slightly contaminated water, swimming pool water with a

max. chlorine content of 0.3 %; ozonised swimming pool water with a max.

salt content of 7 ‰.

http://shop.ksb.com/catalog/k0/en/product/ES000090

Description

Fully automatic package pressure booster system with two to four (F) / six (VC/

SVP) vertical high-pressure pumps; available in cascade-controlled and two

variable speed versions. Cascade control (F) for ensuring the required supply

pressure. The frequency inverter operated VC and SVP versions ensure

variable speed control of each pump via cabinet-mounted frequency inverter

(VC) or PumpDrive variable speed system and KSB SuPremE motor (SVP),

respectively, providing fully electronic control to ensure the required supply

pressure. Automated with BoosterControl.

Applications

Pressure boosting in residential buildings, hospitals, office buildings, hotels,

department stores, industry, etc.

http://shop.ksb.com/catalog/k0/en/product/ES000978

Pressure booster systems

KSB Delta Macro

Rp

Q [m

3

/h]

H [m]

p [bar]

T [°C]

1 1/2

≤ 960

≤ 154

≤ 16

≥ 0 - ≤ +60

Data for 50 Hz operation

Data for 50 Hz operation
