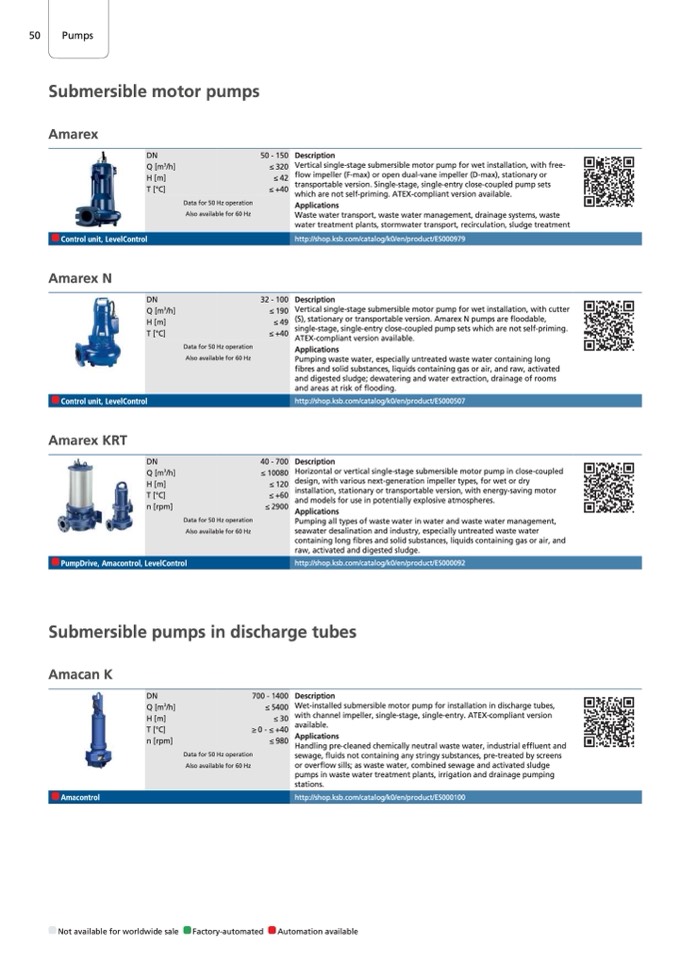

50

Pumps

Pumps

Submersible motor pumps

Amarex

DN

Q [m

3

/h]

H [m]

T [°C]

Control unit, LevelControl

Amarex N

DN

Q [m

3

/h]

H [m]

T [°C]

Control unit, LevelControl

Amarex KRT

DN

Q [m

3

/h]

H [m]

T [°C]

n [rpm]

PumpDrive, Amacontrol, LevelControl

50 - 150

≤ 320

≤ 42

≤ +40

32 - 100

≤ 190

≤ 49

≤ +40

40 - 700

≤ 10080

≤ 120

≤ +60

≤ 2900

Description

Vertical single-stage submersible motor pump for wet installation, with free-

flow impeller (F-max) or open dual-vane impeller (D-max), stationary or

transportable version. Single-stage, single-entry close-coupled pump sets

which are not self-priming. ATEX-compliant version available.

Applications

Waste water transport, waste water management, drainage systems, waste

water treatment plants, stormwater transport, recirculation, sludge treatment

http://shop.ksb.com/catalog/k0/en/product/ES000979

Description

Vertical single-stage submersible motor pump for wet installation, with cutter

(S), stationary or transportable version. Amarex N pumps are floodable,

single-stage, single-entry close-coupled pump sets which are not self-priming.

ATEX-compliant version available.

Applications

Pumping waste water, especially untreated waste water containing long

fibres and solid substances, liquids containing gas or air, and raw, activated

and digested sludge; dewatering and water extraction, drainage of rooms

and areas at risk of flooding.

http://shop.ksb.com/catalog/k0/en/product/ES000507

Description

Horizontal or vertical single-stage submersible motor pump in close-coupled

design, with various next-generation impeller types, for wet or dry

installation, stationary or transportable version, with energy-saving motor

and models for use in potentially explosive atmospheres.

Applications

Pumping all types of waste water in water and waste water management,

seawater desalination and industry, especially untreated waste water

containing long fibres and solid substances, liquids containing gas or air, and

raw, activated and digested sludge.

http://shop.ksb.com/catalog/k0/en/product/ES000092

Amacontrol

Not available for worldwide sale

Factory-automated

Automation available

DN

Q [m

3

/h]

H [m]

T [°C]

n [rpm]

700 - 1400

≤ 5400

≤ 30

≥ 0 - ≤ +40

≤ 980

Data for 50 Hz operation

Also available for 60 Hz

Description

Wet-installed submersible motor pump for installation in discharge tubes,

with channel impeller, single-stage, single-entry. ATEX-compliant version

available.

Applications

Handling pre-cleaned chemically neutral waste water, industrial effluent and

sewage, fluids not containing any stringy substances, pre-treated by screens

or overflow sills; as waste water, combined sewage and activated sludge

pumps in waste water treatment plants, irrigation and drainage pumping

stations.

http://shop.ksb.com/catalog/k0/en/product/ES000100

Data for 50 Hz operation

Also available for 60 Hz

Data for 50 Hz operation

Also available for 60 Hz

Data for 50 Hz operation

Also available for 60 Hz

Submersible pumps in discharge tubes

Amacan K
