52

Pumps

Pumps

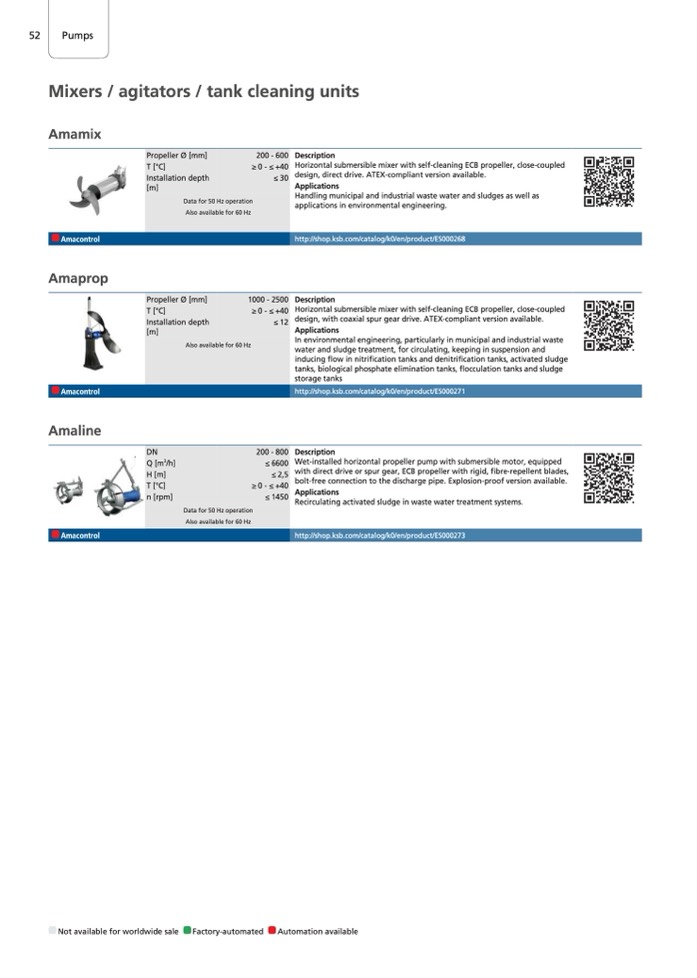

Mixers / agitators / tank cleaning units

Amamix

Amacontrol

Amaprop

Amacontrol

Amaline

Amacontrol

Propeller Ø [mm]

T [°C]

Installation depth

[m]

1000 - 2500

≥ 0 - ≤ +40

≤ 12

Not available for worldwide sale

Factory-automated

Automation available

Propeller Ø [mm]

T [°C]

Installation depth

[m]

200 - 600

≥ 0 - ≤ +40

≤ 30

Description

Horizontal submersible mixer with self-cleaning ECB propeller, close-coupled

design, direct drive. ATEX-compliant version available.

Applications

Handling municipal and industrial waste water and sludges as well as

applications in environmental engineering.

http://shop.ksb.com/catalog/k0/en/product/ES000268

Description

Horizontal submersible mixer with self-cleaning ECB propeller, close-coupled

design, with coaxial spur gear drive. ATEX-compliant version available.

Applications

In environmental engineering, particularly in municipal and industrial waste

water and sludge treatment, for circulating, keeping in suspension and

inducing flow in nitrification tanks and denitrification tanks, activated sludge

tanks, biological phosphate elimination tanks, flocculation tanks and sludge

storage tanks

http://shop.ksb.com/catalog/k0/en/product/ES000271

Description

Wet-installed horizontal propeller pump with submersible motor, equipped

with direct drive or spur gear, ECB propeller with rigid, fibre-repellent blades,

bolt-free connection to the discharge pipe. Explosion-proof version available.

Applications

Recirculating activated sludge in waste water treatment systems.

http://shop.ksb.com/catalog/k0/en/product/ES000273

DN

Q [m

3

/h]

H [m]

T [°C]

n [rpm]

200 - 800

≤ 6600

≤ 2,5

≥ 0 - ≤ +40

≤ 1450

Data for 50 Hz operation

Also available for 60 Hz

Also available for 60 Hz

Data for 50 Hz operation

Also available for 60 Hz
