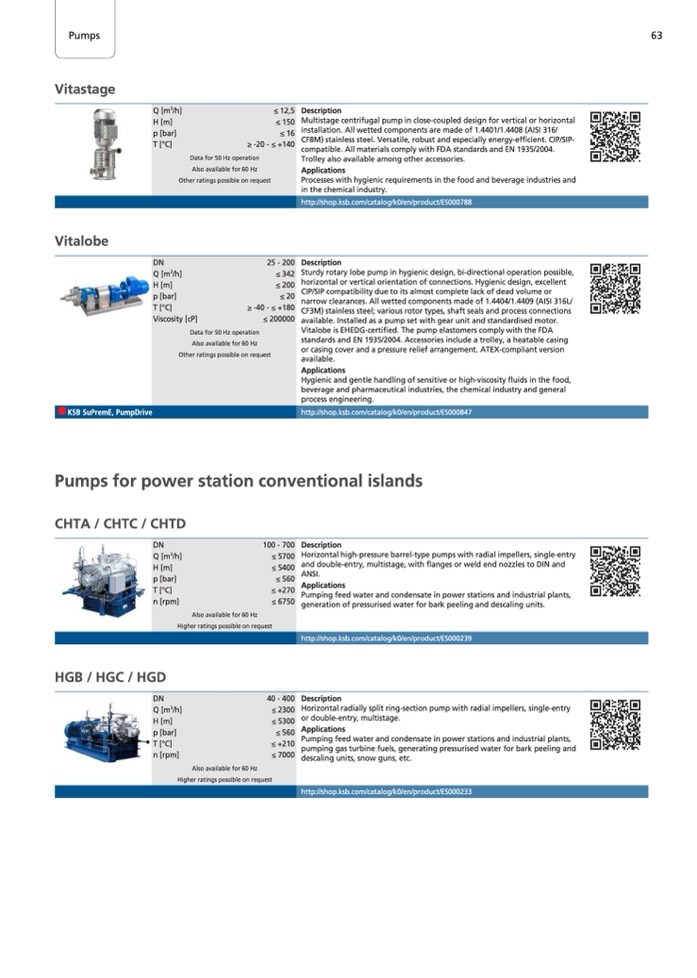

Pumps

Pumps

Vitastage

Vitalobe

KSB SuPremE, PumpDrive

63

HGB / HGC / HGD

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

40 - 400

≤ 2300

≤ 5300

≤ 560

≤ +210

≤ 7000

Q [m

3

/h]

H [m]

p [bar]

T [°C]

≤ 12,5

≤ 150

≤ 16

≥ -20 - ≤ +140

Description

Multistage centrifugal pump in close-coupled design for vertical or horizontal

installation. All wetted components are made of 1.4401/1.4408 (AISI 316/

CF8M) stainless steel. Versatile, robust and especially energy-efficient. CIP/SIP-

compatible. All materials comply with FDA standards and EN 1935/2004.

Trolley also available among other accessories.

Applications

Processes with hygienic requirements in the food and beverage industries and

in the chemical industry.

http://shop.ksb.com/catalog/k0/en/product/ES000788

Description

Sturdy rotary lobe pump in hygienic design, bi-directional operation possible,

horizontal or vertical orientation of connections. Hygienic design, excellent

CIP/SIP compatibility due to its almost complete lack of dead volume or

narrow clearances. All wetted components made of 1.4404/1.4409 (AISI 316L/

CF3M) stainless steel; various rotor types, shaft seals and process connections

available. Installed as a pump set with gear unit and standardised motor.

Vitalobe is EHEDG-certified. The pump elastomers comply with the FDA

standards and EN 1935/2004. Accessories include a trolley, a heatable casing

or casing cover and a pressure relief arrangement. ATEX-compliant version

available.

Applications

Hygienic and gentle handling of sensitive or high-viscosity fluids in the food,

beverage and pharmaceutical industries, the chemical industry and general

process engineering.

http://shop.ksb.com/catalog/k0/en/product/ES000847

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

Viscosity [cP]

25 - 200

≤ 342

≤ 200

≤ 20

≥ -40 - ≤ +180

≤ 200000

Data for 50 Hz operation

Also available for 60 Hz

Other ratings possible on request

Data for 50 Hz operation

Also available for 60 Hz

Other ratings possible on request

Pumps for power station conventional islands

CHTA / CHTC / CHTD

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

100 - 700

≤ 5700

≤ 5400

≤ 560

≤ +270

≤ 6750

Description

Horizontal high-pressure barrel-type pumps with radial impellers, single-entry

and double-entry, multistage, with flanges or weld end nozzles to DIN and

ANSI.

Applications

Pumping feed water and condensate in power stations and industrial plants,

generation of pressurised water for bark peeling and descaling units.

http://shop.ksb.com/catalog/k0/en/product/ES000239

Description

Horizontal radially split ring-section pump with radial impellers, single-entry

or double-entry, multistage.

Applications

Pumping feed water and condensate in power stations and industrial plants,

pumping gas turbine fuels, generating pressurised water for bark peeling and

descaling units, snow guns, etc.

http://shop.ksb.com/catalog/k0/en/product/ES000233

Also available for 60 Hz

Higher ratings possible on request

Also available for 60 Hz

Higher ratings possible on request
