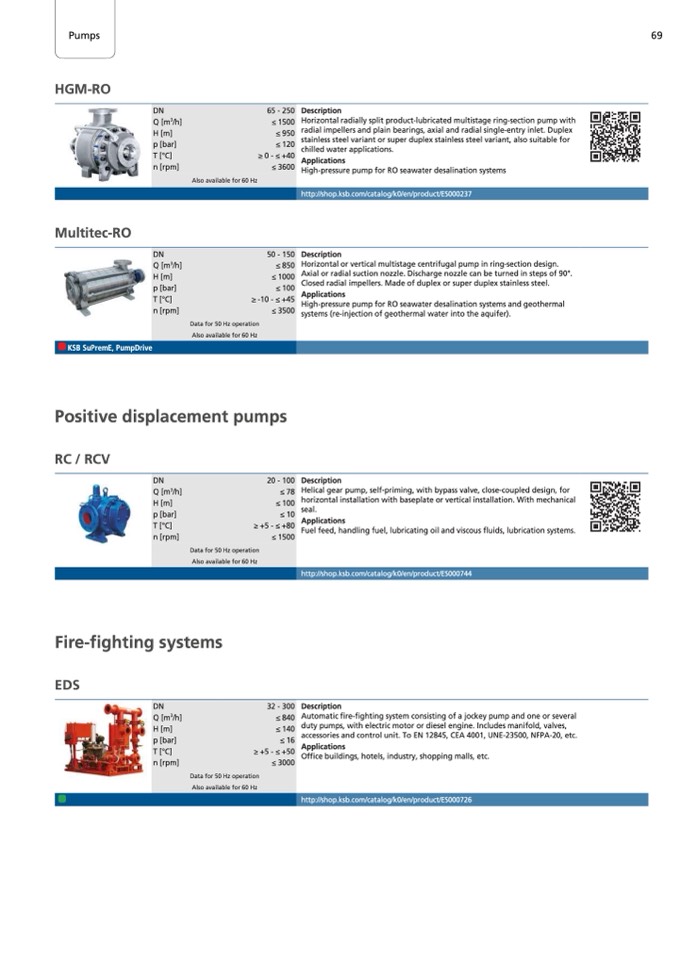

Pumps
Pumps
HGM-RO
Multitec-RO
KSB SuPremE, PumpDrive
69
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
65 - 250
≤ 1500
≤ 950
≤ 120
≥ 0 - ≤ +40
≤ 3600
50 - 150
≤ 850
≤ 1000
≤ 100
≥ -10 - ≤ +45
≤ 3500
Data for 50 Hz operation
Also available for 60 Hz
Description
Horizontal radially split product-lubricated multistage ring-section pump with
radial impellers and plain bearings, axial and radial single-entry inlet. Duplex
stainless steel variant or super duplex stainless steel variant, also suitable for
chilled water applications.
Applications
High-pressure pump for RO seawater desalination systems
http://shop.ksb.com/catalog/k0/en/product/ES000237
Description
Horizontal or vertical multistage centrifugal pump in ring-section design.
Axial or radial suction nozzle. Discharge nozzle can be turned in steps of 90°.
Closed radial impellers. Made of duplex or super duplex stainless steel.
Applications
High-pressure pump for RO seawater desalination systems and geothermal
systems (re-injection of geothermal water into the aquifer).
Positive displacement pumps
RC / RCV
Fire-fighting systems
EDS
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
20 - 100
≤ 78
≤ 100
≤ 10
≥ +5 - ≤ +80
≤ 1500
Data for 50 Hz operation
Also available for 60 Hz
Description
Helical gear pump, self-priming, with bypass valve, close-coupled design, for
horizontal installation with baseplate or vertical installation. With mechanical
seal.
Applications
Fuel feed, handling fuel, lubricating oil and viscous fluids, lubrication systems.
http://shop.ksb.com/catalog/k0/en/product/ES000744
Description
Automatic fire-fighting system consisting of a jockey pump and one or several
duty pumps, with electric motor or diesel engine. Includes manifold, valves,
accessories and control unit. To EN 12845, CEA 4001, UNE-23500, NFPA-20, etc.
Applications
Office buildings, hotels, industry, shopping malls, etc.
http://shop.ksb.com/catalog/k0/en/product/ES000726
Also available for 60 Hz
32 - 300
≤ 840
≤ 140
≤ 16
≥ +5 - ≤ +50
≤ 3000
Data for 50 Hz operation
Also available for 60 Hz
