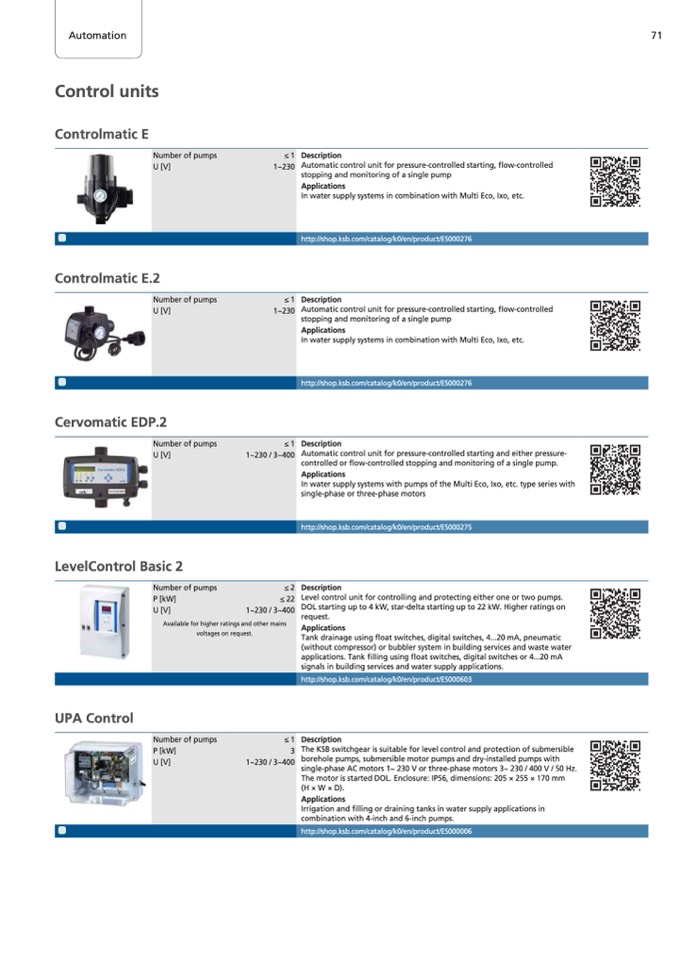

Automation

Automation

Control units

Controlmatic E

Number of pumps

U [V]

Controlmatic E.2

Number of pumps

U [V]

Cervomatic EDP.2

Number of pumps

U [V]

LevelControl Basic 2

71

UPA Control

Number of pumps

P [kW]

U [V]

≤1

1~230

≤1

1~230

≤1

1~230 / 3~400

≤ 2

≤ 22

1~230 / 3~400

Description

Automatic control unit for pressure-controlled starting, flow-controlled

stopping and monitoring of a single pump

Applications

In water supply systems in combination with Multi Eco, Ixo, etc.

http://shop.ksb.com/catalog/k0/en/product/ES000276

Description

Automatic control unit for pressure-controlled starting, flow-controlled

stopping and monitoring of a single pump

Applications

In water supply systems in combination with Multi Eco, Ixo, etc.

http://shop.ksb.com/catalog/k0/en/product/ES000276

Description

Automatic control unit for pressure-controlled starting and either pressure-

controlled or flow-controlled stopping and monitoring of a single pump.

Applications

In water supply systems with pumps of the Multi Eco, Ixo, etc. type series with

single-phase or three-phase motors

http://shop.ksb.com/catalog/k0/en/product/ES000275

Description

Level control unit for controlling and protecting either one or two pumps.

DOL starting up to 4 kW, star-delta starting up to 22 kW. Higher ratings on

request.

Applications

Tank drainage using float switches, digital switches, 4...20 mA, pneumatic

(without compressor) or bubbler system in building services and waste water

applications. Tank filling using float switches, digital switches or 4...20 mA

signals in building services and water supply applications.

http://shop.ksb.com/catalog/k0/en/product/ES000603

Description

The KSB switchgear is suitable for level control and protection of submersible

borehole pumps, submersible motor pumps and dry-installed pumps with

single-phase AC motors 1~ 230 V or three-phase motors 3~ 230 / 400 V / 50 Hz.

The motor is started DOL. Enclosure: IP56, dimensions: 205 × 255 × 170 mm

(H × W × D).

Applications

Irrigation and filling or draining tanks in water supply applications in

combination with 4-inch and 6-inch pumps.

http://shop.ksb.com/catalog/k0/en/product/ES000006

Available for higher ratings and other mains

voltages on request.

Number of pumps

P [kW]

U [V]

≤ 1

3

1~230 / 3~400
