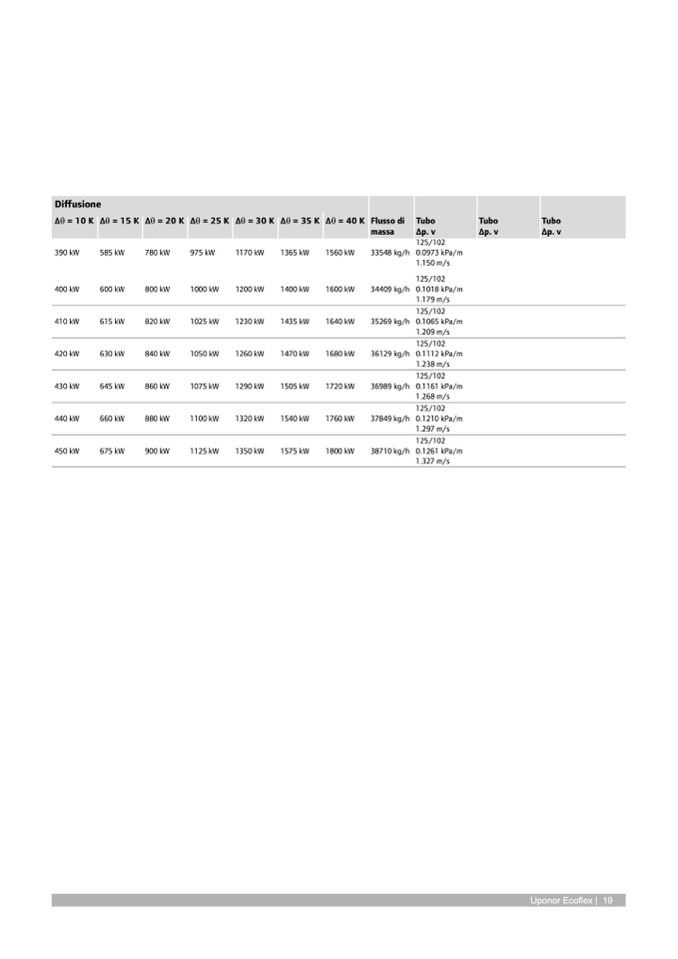

Diffusione
∆θ = 10 K ∆θ = 15 K ∆θ = 20 K ∆θ = 25 K ∆θ = 30 K ∆θ = 35 K ∆θ = 40 K
Flusso di
massa
Tubo
∆p. v
Tubo
∆p. v
Tubo
∆p. v
390 kW
400 kW
410 kW
420 kW
430 kW
440 kW
450 kW
585 kW
600 kW
615 kW
630 kW
645 kW
660 kW
675 kW
780 kW
800 kW
820 kW
840 kW
860 kW
880 kW
900 kW
975 kW
1000 kW
1025 kW
1050 kW
1075 kW
1100 kW
1125 kW
1170 kW
1200 kW
1230 kW
1260 kW
1290 kW
1320 kW
1350 kW
1365 kW
1400 kW
1435 kW
1470 kW
1505 kW
1540 kW
1575 kW
1560 kW
1600 kW
1640 kW
1680 kW
1720 kW
1760 kW
1800 kW
33548 kg/h
34409 kg/h
35269 kg/h
36129 kg/h
36989 kg/h
37849 kg/h
38710 kg/h
125/102
0.0973 kPa/m
1.150 m/s
125/102
0.1018 kPa/m
1.179 m/s
125/102
0.1065 kPa/m
1.209 m/s
125/102
0.1112 kPa/m
1.238 m/s
125/102
0.1161 kPa/m
1.268 m/s
125/102
0.1210 kPa/m
1.297 m/s
125/102
0.1261 kPa/m
1.327 m/s
Uponor Ecoflex | 19
