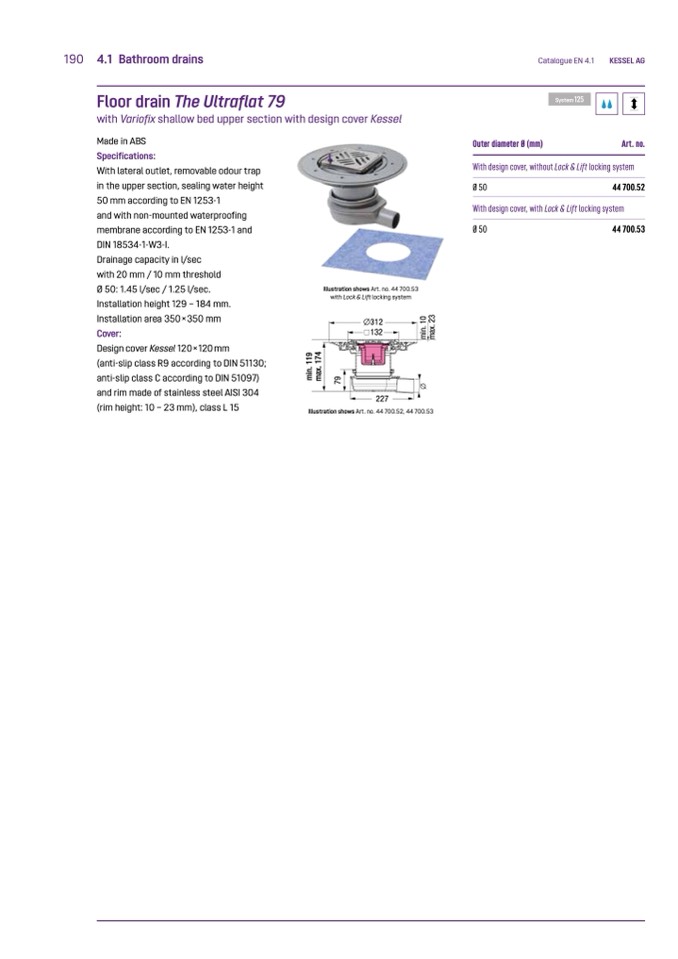

190 4.1 Bathroom drains

Floor drain The Ultraflat 79

with Variofix shallow bed upper section with design cover Kessel

Made in ABS

Catalogue EN 4.1

Outer diameter Ø (mm)

KESSEL AG

Art. no.

Specifications:

With lateral outlet, removable odour trap

in the upper section, sealing water height

50 mm according to EN 1253-1

and with non-mounted waterproofing

membrane according to EN 1253-1 and

DIN 18534-1-W3-I.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

Ø 50: 1.45 l/sec / 1.25 l/sec.

Installation height 129 – 184 mm.

Installation area 350×350 mm

Cover:

Design cover Kessel 120×120 mm

(anti-slip class R9 according to DIN 51130;

anti-slip class C according to DIN 51097)

and rim made of stainless steel AISI 304

(rim height: 10 – 23 mm), class L 15

With design cover, without Lock & Lift locking system

Ø 50

44 700.52

With design cover, with Lock & Lift locking system

Illustration shows Art. no. 44 700.53

with Lock & Lift locking system

312

132

227

Illustration shows Art. no. 44 700.52, 44 700.53

Ø 50

44 700.53

m

i

n

.

1

1

9

m

a

x

.

1

7

4

7

9

m

i

n

.

1

0

m

a

x

.

2

3
