KESSEL AG

Catalogue EN 4.1

4.1 Bathroom drains 191

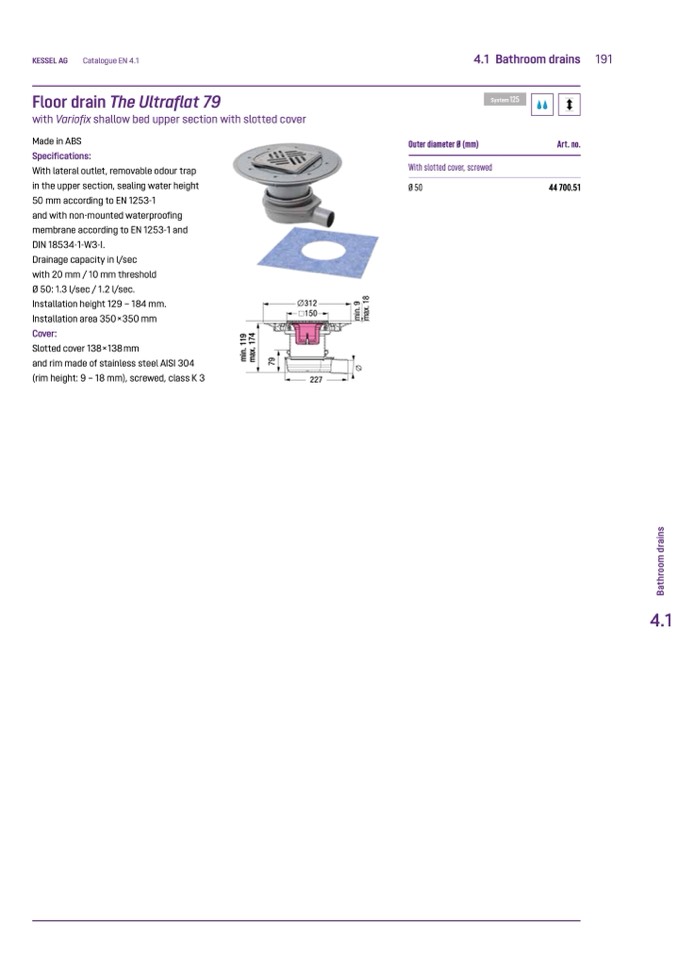

Floor drain The Ultraflat 79

with Variofix shallow bed upper section with slotted cover

Made in ABS

Specifications:

With lateral outlet, removable odour trap

in the upper section, sealing water height

50 mm according to EN 1253-1

and with non-mounted waterproofing

membrane according to EN 1253-1 and

DIN 18534-1-W3-I.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

Ø 50: 1.3 l/sec / 1.2 l/sec.

Installation height 129 – 184 mm.

312

B

a

t

h

r

o

o

m

d

r

a

i

n

s

m

i

n

.

1

1

9

m

a

x

.

1

7

4

7

9

m

i

n

.

9

m

a

x

.

1

8

Installation area 350×350 mm

Cover:

Slotted cover 138×138 mm

and rim made of stainless steel AISI 304

(rim height: 9 – 18 mm), screwed, class K 3

150

227

Outer diameter Ø (mm)

Art. no.

With slotted cover, screwed

Ø 50

44 700.51

4.1
