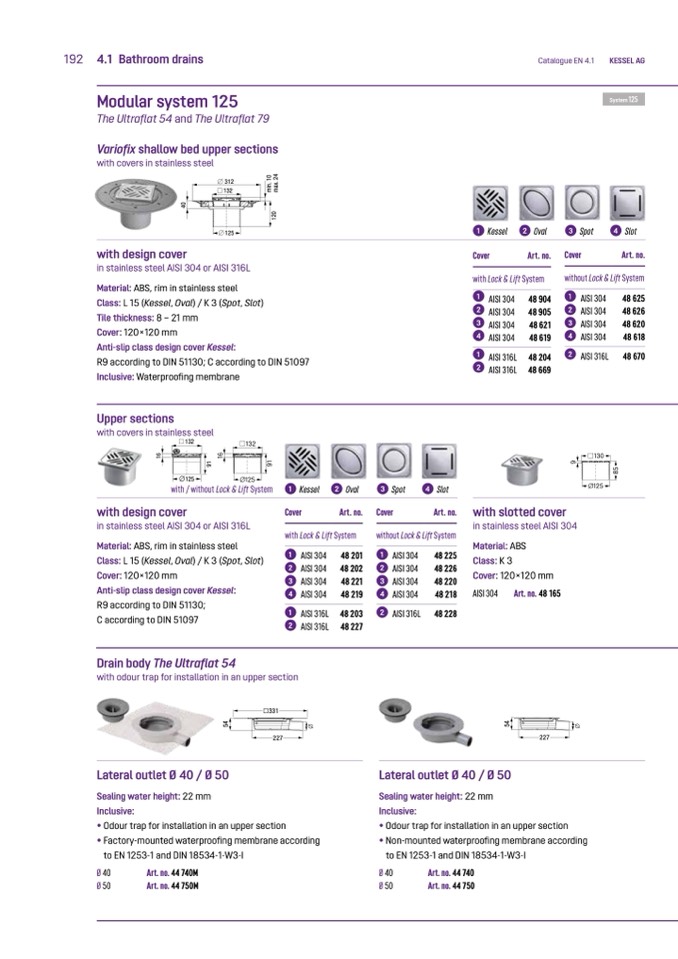

192 4.1 Bathroom drains
Modular system 125
The Ultraflat 54 and The Ultraflat 79
Variofix shallow bed upper sections
with covers in stainless steel
Catalogue EN 4.1
KESSEL AG
with design cover
Cover
in stainless steel AISI 304 or AISI 316L
Material: ABS, rim in stainless steel
Class: L 15 (Kessel, Oval) / K 3 (Spot, Slot)
Tile thickness: 8 – 21 mm
Cover: 120×120 mm
Anti-slip class design cover Kessel:
R9 according to DIN 51130; C according to DIN 51097
Inclusive: Waterproofing membrane
with Lock & Lift System
1 AISI304
48904
2 AISI304
48905
3 AISI304
48621
4 AISI304
48619
without Lock & Lift System
1 AISI304
48625
2 AISI304
48626
3 AISI304
48620
4 AISI304
48618
Upper sections
with covers in stainless steel
132
132
125
Ø125
with / without Lock & Lift System
with design cover
in stainless steel AISI 304 or AISI 316L
Material: ABS, rim in stainless steel
Class: L 15 (Kessel, Oval) / K 3 (Spot, Slot)
Cover: 120×120 mm
Anti-slip class design cover Kessel:
R9 according to DIN 51130;
C according to DIN 51097
1 Kessel
Cover
2 Oval
Art. no.
3 Spot
Cover
without Lock & Lift System
48 218
48 228
130
Ø125
Drain body The Ultraflat 54
with odour trap for installation in an upper section
331
227
Lateral outlet Ø 40 / Ø 50
Sealing water height: 22 mm
Inclusive:
• Odour trap for installation in an upper section
• Factory-mounted waterproofing membrane according
to EN 1253-1 and DIN 18534-1-W3-I
Ø40
Art.no.44740M
Ø50
Art.no.44750M
Lateral outlet Ø 40 / Ø 50
Sealing water height: 22 mm
Inclusive:
312
132
125
1
Kessel
2 Oval
Art. no.
3 Spot
Cover
4
Slot
Art. no.
with Lock & Lift System
1
2
3
4
1
2
AISI 304
AISI 304
AISI304
48221
1 AISI 304
2 AISI 304
3 AISI304
48220
AISI 304
AISI 316L
AISI 316L
48 219
48 203
48 227
4 AISI 304
2 AISI 316L
AISI 304
Art. no. 48 165
227
48 201
48 202
48 225
48 226
4 Slot
Art. no.
with slotted cover
in stainless steel AISI 304
Material: ABS
Class: K 3
Cover: 120×120 mm
• Odour trap for installation in an upper section
FOTO.45101.64
1 AISI 316L
2 AISI 316L
48 204
48 669
2 AISI 316L
48 670
5
4
1
6
5
4
8
5
9
1
9
1
1
2
0
m
i
n
.
1
0
m
a
x
.
2
4
9
1
6
4
0
• Non-mounted waterproofing membrane according
to EN 1253-1 and DIN 18534-1-W3-I
Ø40
Art.no.44740
Ø50
Art.no.44750
