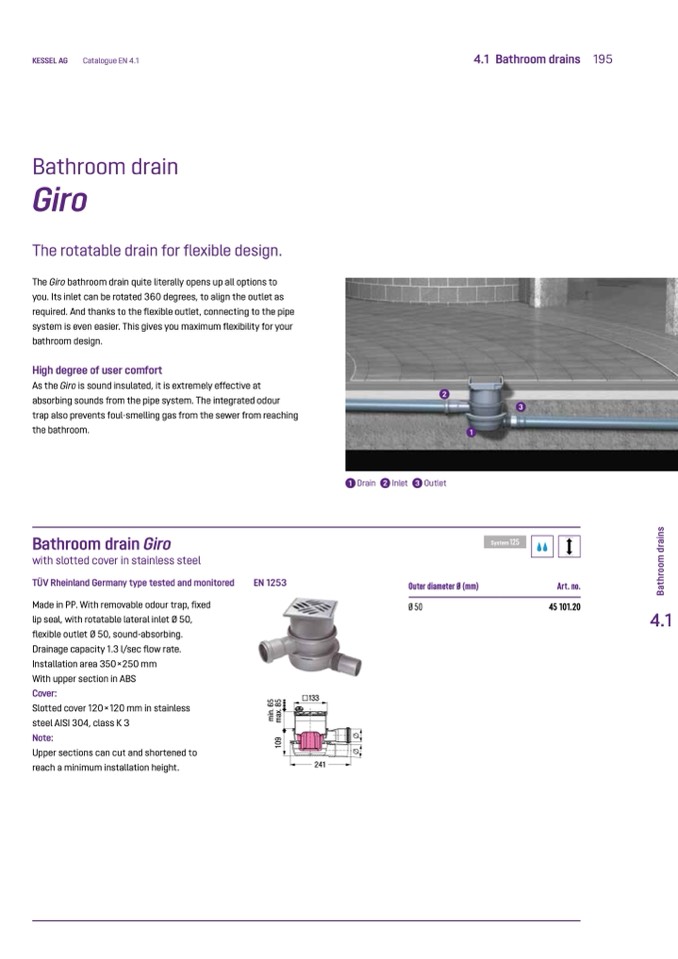

KESSEL AG

Catalogue EN 4.1

4.1 Bathroom drains 195

Bathroom drain

Giro

The rotatable drain for flexible design.

The Giro bathroom drain quite literally opens up all options to

you. Its inlet can be rotated 360 degrees, to align the outlet as

required. And thanks to the

flexible outlet, connecting to the pipe

system is even easier. This gives you maximum flexibility for your

bathroom design.

High degree of user comfort

As the Giro is sound insulated, it is extremely effective at

absorbing sounds from the pipe system. The integrated odour

trap also prevents foul-smelling gas from the sewer from reaching

the bathroom.

2

1 Drain 2 Inlet 3 Outlet

3

1

Bathroom drain Giro

with slotted cover in stainless steel

TÜV Rheinland Germany type tested and monitored

Made in PP. With removable odour trap, fixed

lip seal, with rotatable lateral inlet Ø 50,

flexible outlet Ø 50, sound-absorbing.

Drainage capacity 1.3 l/sec flow rate.

Installation area 350×250 mm

With upper section in ABS

Cover:

Slotted cover 120×120 mm in stainless

steel AISI 304, class K 3

Note:

Upper sections can cut and shortened to

reach a minimum installation height.

EN 1253

Outer diameter Ø (mm)

Ø 50

Art. no.

45 101.20

133

241

4.1

m

i

n

.

6

5

1

0

9

m

a

x

.

8

5

B

a

t

h

r

o

o

m

d

r

a

i

n

s
