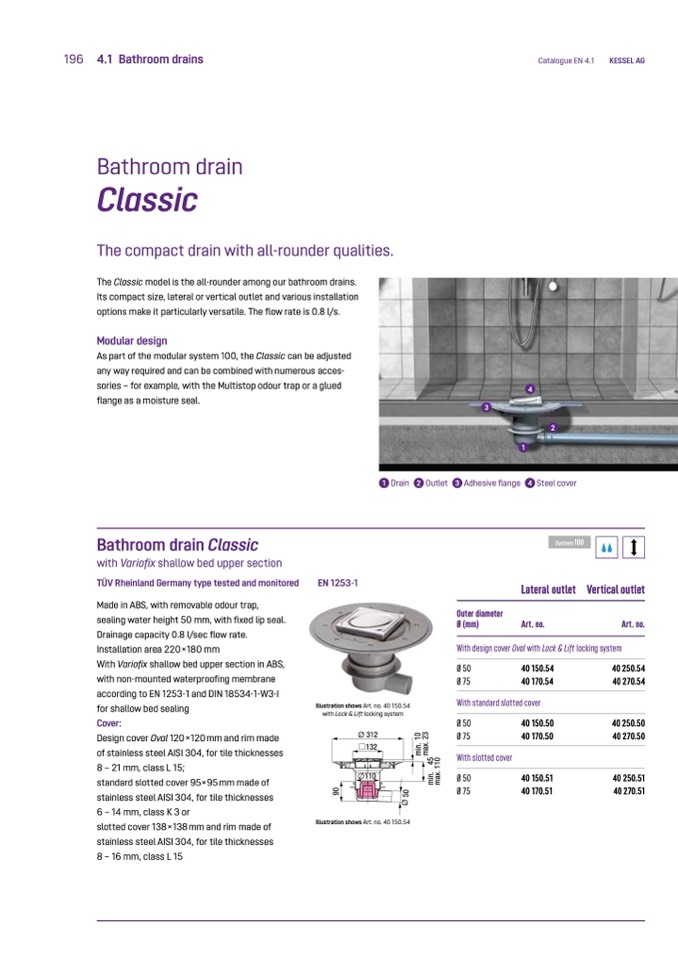

196 4.1 Bathroom drains

Catalogue EN 4.1

KESSEL AG

Bathroom drain

Classic

The compact drain with all-rounder qualities.

The Classic model is the all-rounder among our bathroom drains.

Its compact size, lateral or vertical outlet and various installation

options make it particularly versatile. The flow rate is 0.8 l/s.

Modular design

As part of the modular system 100, the Classic can be adjusted

any way required and can be combined with numerous acces-

sories – for example, with the Multistop odour trap or a glued

flange as a moisture seal.

4

3

2

1

Bathroom drain Classic

with Variofix shallow bed upper section

TÜV Rheinland Germany type tested and monitored

Made in ABS, with removable odour trap,

sealing water height 50 mm, with fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area 220×180 mm

With Variofix shallow bed upper section in ABS,

with non-mounted waterproofing membrane

according to EN 1253-1 and DIN 18534-1-W3-I

for shallow bed sealing

Cover:

Design cover Oval 120×120 mm and rim made

of stainless steel AISI 304, for tile thicknesses

8 – 21 mm, class L 15;

standard slotted cover 95×95 mm made of

stainless steel AISI 304, for tile thicknesses

6 – 14 mm, class K 3 or

slotted cover 138×138 mm and rim made of

stainless steel AISI 304, for tile thicknesses

8 – 16 mm, class L 15

EN 1253-1

Lateral outlet

Art. no.

Vertical outlet

Art. no.

Illustration shows Art. no. 40 150.54

with Lock & Lift locking system

Ø 312

132

110

Illustration shows Art. no. 40 150.54

Ø 50

40 150.54

Ø 75

40 170.54

With standard slotted cover

40 250.54

40 270.54

40 250.50

40 270.50

40 250.51

40 270.51

1 Drain

2 Outlet

3 Adhesive flange

Outer diameter

Ø (mm)

4

Steel cover

With design cover Oval with Lock & Lift locking system

Ø 50

Ø 75

With slotted cover

Ø 50

Ø 75

40 150.50

40 170.50

40 150.51

40 170.51

9

0

m

i

n

.

4

5

m

a

x

.

2

3

m

a

x

.

1

1

0

m

i

n

.

1

0

Ø

5

0
