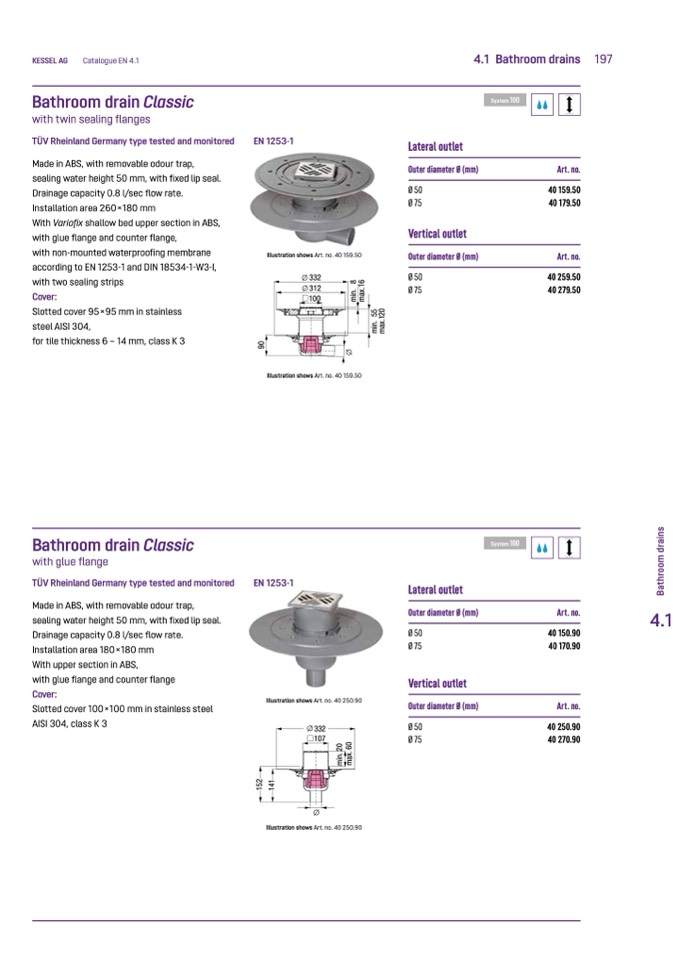

KESSEL AG

Catalogue EN 4.1

4.1

Bathroom drains 197

Bathroom drain Classic

with twin sealing flanges

TÜV Rheinland Germany type tested and monitored

Made in ABS, with removable odour trap,

sealing water height 50 mm, with fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area 260×180 mm

With Variofix shallow bed upper section in ABS,

with glue

flange and counter flange,

with non-mounted waterproofing membrane

according to EN 1253-1 and DIN 18534-1-W3-I,

with two sealing strips

Cover:

Slotted cover 95×95 mm in stainless

steel AISI 304,

for tile thickness 6 – 14 mm, class K 3

EN 1253-1

Illustration shows Art. no. 40 159.50

332

312

100

Illustration shows Art. no. 40 159.50

Lateral outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

Vertical outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

Art. no.

40 159.50

40 179.50

Art. no.

40 259.50

40 279.50

Bathroom drain Classic

with glue flange

TÜV Rheinland Germany type tested and monitored

Made in ABS, with removable odour trap,

sealing water height 50 mm, with fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area 180×180 mm

With upper section in ABS,

with glue

flange and counter flange

Cover:

Slotted cover 100×100 mm in stainless steel

AISI 304, class K 3

EN 1253-1

Illustration shows Art. no. 40 250.90

332

107

Illustration shows Art. no. 40 250.90

Lateral outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

Vertical outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

FOTO.40159.50

Art. no.

40 150.90

40 170.90

Art. no.

40 250.90

40 270.90
