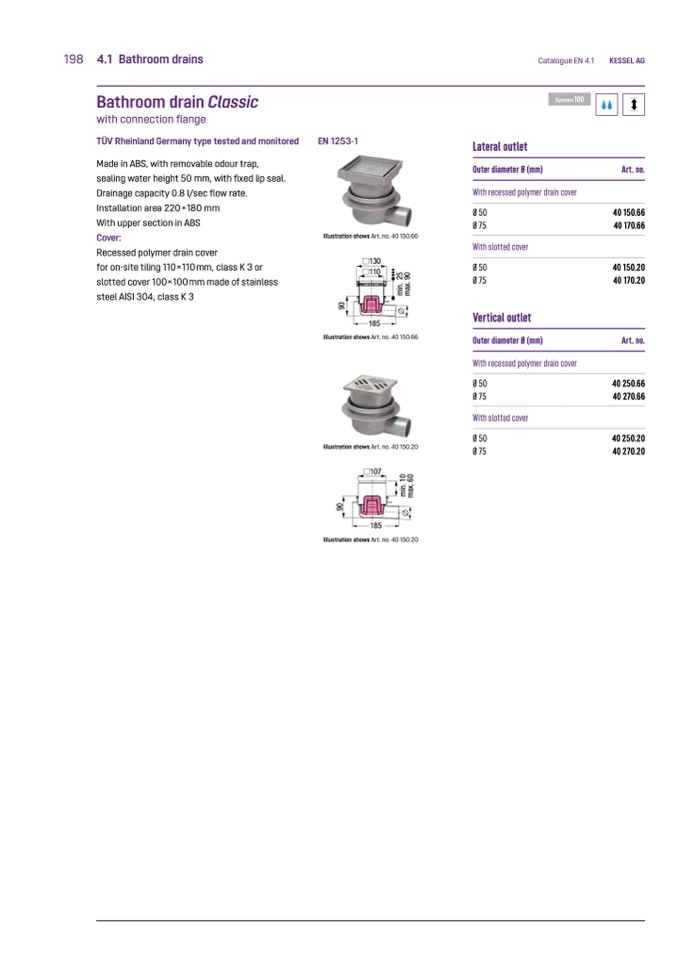

Bathroom drain Classic

with connection flange

TÜV Rheinland Germany type tested and monitored

Made in ABS, with removable odour trap,

sealing water height 50 mm, with fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area 220×180 mm

With upper section in ABS

Cover:

Recessed polymer drain cover

for on-site tiling 110×110 mm, class K 3 or

slotted cover 100×100 mm made of stainless

steel AISI 304, class K 3

Catalogue EN 4.1

KESSEL AG

Art. no.

40 150.66

40 170.66

40 150.20

40 170.20

Art. no.

40 250.66

40 270.66

40 250.20

40 270.20

EN 1253-1

Illustration shows Art. no. 40 150.66

Lateral outlet

130

Ø 50

110

Ø 75

Vertical outlet

Outer diameter Ø (mm)

With recessed polymer drain cover

Ø 50

Ø 75

With slotted cover

Ø 50

Ø 75

9

0

9

0

m

i

n

.

1

0

m

a

x

.

6

0

m

i

n

.

2

5

m

a

x

.

9

0

185

Illustration shows Art. no. 40 150.66

Illustration shows Art. no. 40 150.20

107

185

Illustration shows Art. no. 40 150.20

Outer diameter Ø (mm)

With recessed polymer drain cover

Ø 50

Ø 75

With slotted cover
