Bathroom drain Classic

with connection flange

TÜV Rheinland Germany type tested and monitored

Made in ABS. Lateral outlet 2.5° / vertical

outlet, with removable odour trap,

sealing water height 50 mm, with fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area lateral 220×180 mm.

Installation area vertical 180×180 mm

With upper section with sealing flange

for use with 1 – 4 mm vinyl / synthetic flooring

Cover:

Slotted cover Ø 120 mm made of polymer, grey,

class K 3

EN 1253-1

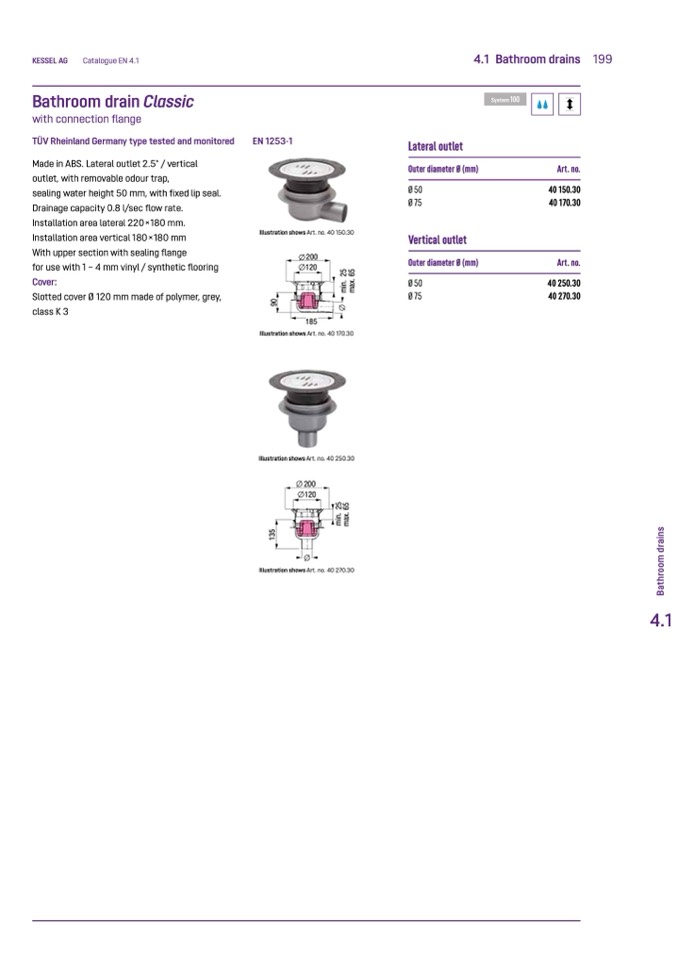

Illustration shows Art. no. 40 150.30

200

120

185

Illustration shows Art. no. 40 170.30

Illustration shows Art. no. 40 250.30

200

120

Illustration shows Art. no. 40 270.30

Lateral outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

Vertical outlet

Outer diameter Ø (mm)

Ø 50

Ø 75

Art. no.

40 150.30

40 170.30

Art. no.

40 250.30

40 270.30
