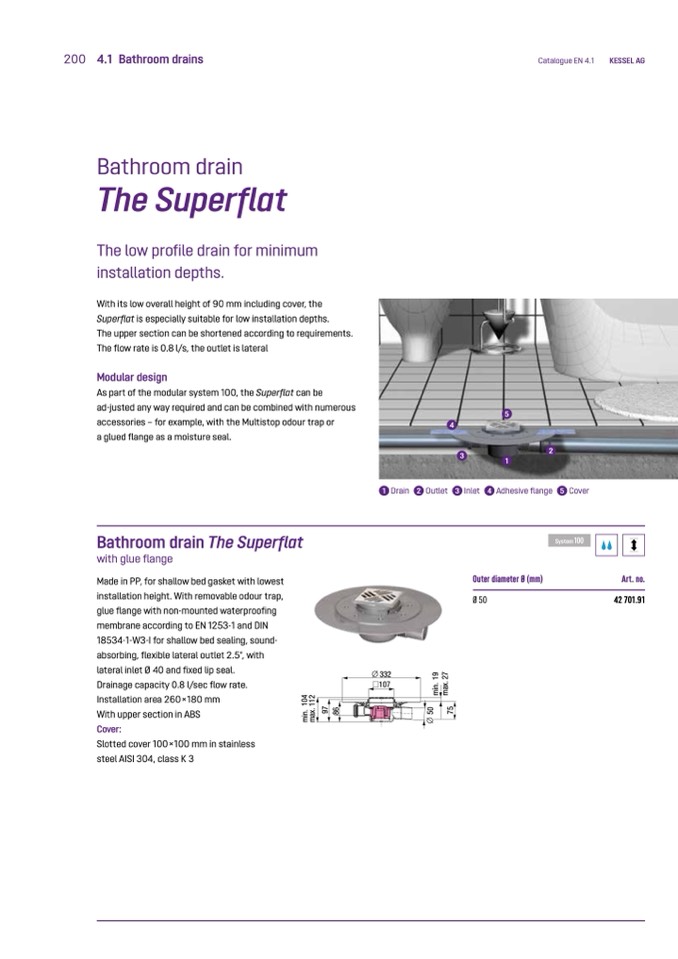

200 4.1 Bathroom drains

Catalogue EN 4.1

KESSEL AG

Bathroom drain

The Superflat

The low profile drain for minimum

installation depths.

With its low overall height of 90 mm including cover, the

Superflat is especially suitable for low installation depths.

The upper section can be shortened according to requirements.

The flow rate is 0.8 l/s, the outlet is lateral

Modular design

As part of the modular system 100, the Superflat can be

ad-justed any way required and can be combined with numerous

accessories – for example, with the Multistop odour trap or

a glued flange as a moisture seal.

Bathroom drain The Superflat

with glue flange

Made in PP, for shallow bed gasket with lowest

installation height. With removable odour trap,

glue flange with non-mounted waterproofing

membrane according to EN 1253-1 and DIN

18534-1-W3-I for shallow bed sealing, sound-

absorbing, flexible lateral outlet 2.5°, with

lateral inlet Ø 40 and fixed lip seal.

Drainage capacity 0.8 l/sec flow rate.

Installation area 260×180 mm

With upper section in ABS

Cover:

Slotted cover 100×100 mm in stainless

steel AISI 304, class K 3

4

3

5

2

1

332

107

1 Drain 2 Outlet 3 Inlet 4 Adhesiveflange 5 Cover

Outer diameter Ø (mm)

Ø 50

Art. no.

42 701.91

m

i

n

.

1

0

4

m

a

x

.

1

1

2

9

7

8

6

m

i

n

.

1

9

7

5

m

a

x

.

2

7

5

0
