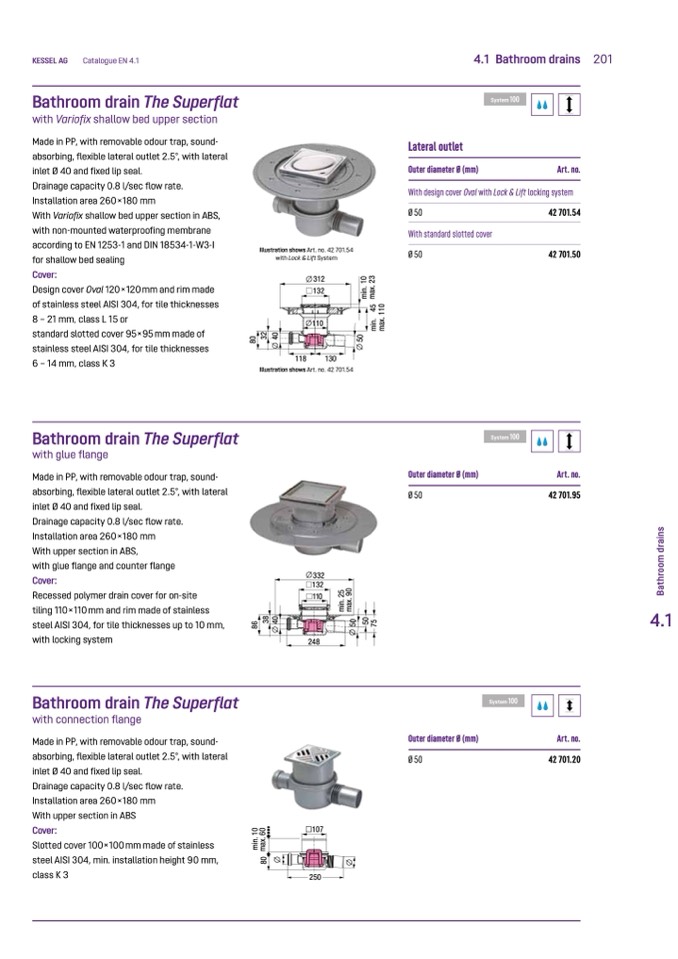

Bathroom drain The Superflat
with Variofix shallow bed upper section
Made in PP, with removable odour trap, sound-
absorbing, flexible lateral outlet 2.5°, with lateral
inlet Ø 40 and fixed lip seal.
Drainage capacity 0.8 l/sec flow rate.
Installation area 260×180 mm
With Variofix shallow bed upper section in ABS,
with non-mounted waterproofing membrane
according to EN 1253-1 and DIN 18534-1-W3-I
for shallow bed sealing
Cover:
Design cover Oval 120×120 mm and rim made
of stainless steel AISI 304, for tile thicknesses
8 – 21 mm, class L 15 or
standard slotted cover 95×95 mm made of
stainless steel AISI 304, for tile thicknesses
6 – 14 mm, class K 3
Bathroom drain The Superflat
with glue flange
Made in PP, with removable odour trap, sound-
absorbing, flexible lateral outlet 2.5°, with lateral
inlet Ø 40 and fixed lip seal.
Drainage capacity 0.8 l/sec flow rate.
Installation area 260×180 mm
With upper section in ABS,
with glue
flange and counter flange
Cover:
Recessed polymer drain cover for on-site
tiling 110×110 mm and rim made of stainless
steel AISI 304, for tile thicknesses up to 10 mm,
with locking system
Bathroom drain The Superflat
with connection flange
Made in PP, with removable odour trap, sound-
absorbing, flexible lateral outlet 2.5°, with lateral
inlet Ø 40 and fixed lip seal.
Drainage capacity 0.8 l/sec flow rate.
Installation area 260×180 mm
With upper section in ABS
Cover:
Slotted cover 100×100 mm made of stainless
steel AISI 304, min. installation height 90 mm,
class K 3
Lateral outlet
Outer diameter Ø (mm)
Art. no.
With design cover Oval with Lock & Lift locking system
Illustration shows Art. no. 42 701.54
with Lock & Lift System
312
132
110
118
130
Illustration shows Art. no. 42 701.54
Ø 50
With standard slotted cover
Ø 50
42 701.54
42 701.50
332
132
110
248
