66 mm

with cover in stainless steel AISI 304

Linearis Compact

in stainless steel AISI 304

Material: ABS, rim in stainless steel

Class: K 3

Cover: Can be reversed and tiled on site

Sealing water height: 50 mm

Drainage capacity: 0.6 l/sec (10 mm threshold)

Inclusive: Removable odour trap

(remove from all drain bodies during

installation), seeping water opening

prepared, installation supports and

waterproofing membrane

Upper sections

with covers in stainless steel

312

132

110

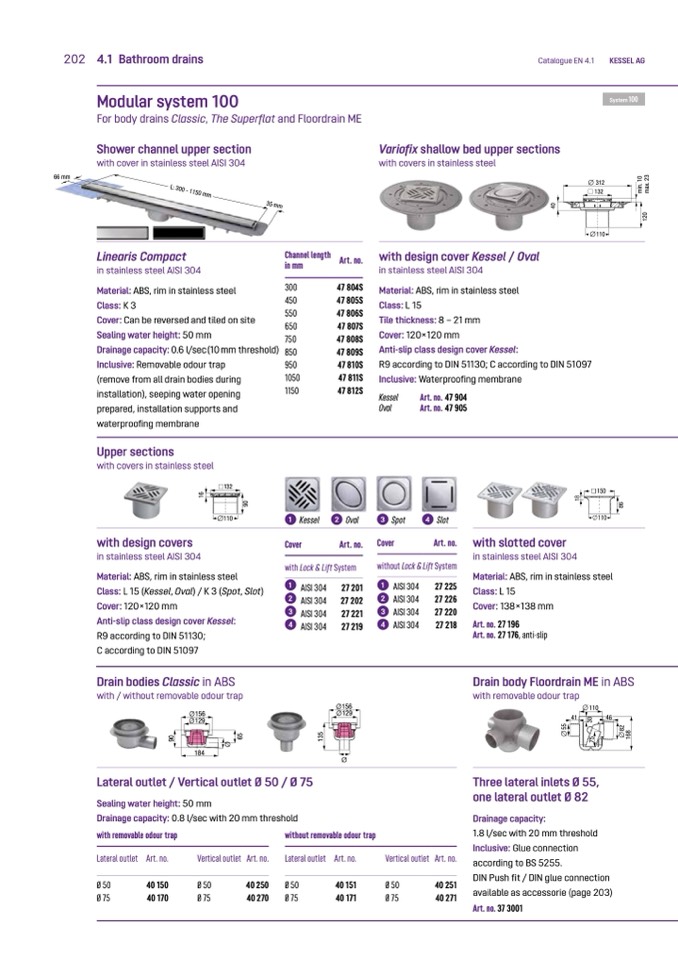

202 4.1 Bathroom drains

Modular system 100

Catalogue EN 4.1

Variofix shallow bed upper sections

with covers in stainless steel

with design cover Kessel / Oval

in stainless steel AISI 304

Material: ABS, rim in stainless steel

Class: L 15

Tile thickness: 8 – 21 mm

Cover: 120×120 mm

Anti-slip class design cover Kessel:

R9 according to DIN 51130; C according to DIN 51097

Inclusive: Waterproofing membrane

KESSEL AG

For body drains Classic, The Superflat and Floordrain ME

Shower channel upper section

L: 300 - 1150 mm

35 mm

with design covers

in stainless steel AISI 304

132

110

132

1 Kessel

2 Oval

Cover

Art. no.

with Lock & Lift System

with slotted cover

in stainless steel AISI 304

Material: ABS, rim in stainless steel

1

2

3

4

AISI 304

AISI 304

AISI 304

AISI 304

27 225

27 226

27 220

27 218

Material: ABS, rim in stainless steel

Class: L 15

Cover: 138×138 mm

Art. no. 27 196

Art. no. 27 176, anti-slip

Drain body Floordrain ME in ABS

with removable odour trap

110

41

Three lateral inlets Ø 55,

one lateral outlet Ø 82

Drainage capacity:

1.8 l/sec with 20 mm threshold

Inclusive: Glue connection

according to BS 5255.

DIN Push fit / DIN glue connection

available as accessorie (page 203)

Art. no. 37 3001

Class: L 15 (Kessel, Oval) / K 3 (Spot, Slot)

1

27 201

27 202

27 221

27 219

Ø 156

Ø 129

Ø

Cover: 120×120 mm

2

R9 according to DIN 51130;

C according to DIN 51097

Drain bodies Classic in ABS

with / without removable odour trap

Ø 156

Ø 129

184

Anti-slip class design cover Kessel:

3

46

8

2

9

0

6

5

9

0

1

3

5

7

5

5

5

3

0

1

6

8

1

6

1

2

0

m

i

n

.

1

0

m

a

x

.

2

3

4

0

Ø

Lateral outlet / Vertical outlet Ø 50 / Ø 75

Sealing water height: 50 mm

Drainage capacity: 0.8 l/sec with 20 mm threshold

with removable odour trap

Lateral outlet Art. no.

Vertical outlet

Art. no.

without removable odour trap

Lateral outlet Art. no.

Vertical outlet

Art. no.

Ø50

40150

Ø50

40250

Ø50

40151

Ø50

40251

Ø75

40170

Ø75

40270

Ø75

40171

Ø75

40271

Channel length

in mm

300

450

550

650

750

850

950

1050

1150

Art. no.

47 804S

47 805S

47 806S

47 807S

47 808S

47 809S

47 810S

47 811S

47 812S

Kessel

Art. no. 47 904

Oval

Art. no. 47 905

3 Spot

4 Slot

Cover

Art. no.

without Lock & Lift System

AISI 304

AISI 304

AISI 304

4 AISI 304
