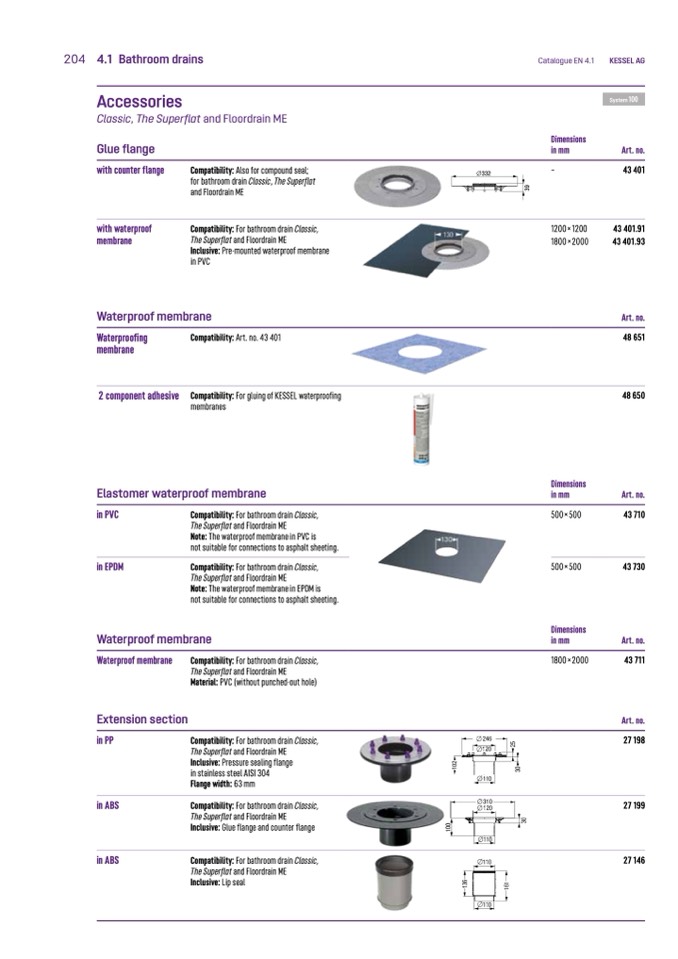

204 4.1 Bathroom drains

Accessories

Classic, The Superflat and Floordrain ME

Glue flange

Catalogue EN 4.1

Dimensions

in mm

332

–

1200 × 1200

1800 × 2000

KESSEL AG

Art. no.

43 401

401.91

401.93

Art. no.

48 651

48 650

Art. no.

43 710

43 730

Art. no.

43 711

Art. no.

27 198

27 199

27 146

with counter flange

with waterproof

membrane

Compatibility: Also for compound seal;

for bathroom drain Classic, The Superflat

and Floordrain ME

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Inclusive: Pre-mounted waterproof membrane

in PVC

43

43

Waterproof membrane

Waterproofing

Compatibility: Art. no. 43 401

membrane

2 component adhesive Compatibility: For gluing of KESSEL waterproofing

membranes

Elastomer waterproof membrane

Dimensions

in mm

500 × 500

500 × 500

Dimensions

in mm

1800 × 2000

in PVC

in EPDM

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Note: The waterproof membrane in PVC is

not suitable for connections to asphalt sheeting.

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Note: The waterproof membrane in EPDM is

not suitable for connections to asphalt sheeting.

Waterproof membrane

Waterproof membrane

Extension section

in PP

in ABS

in ABS

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Material: PVC (without punched-out hole)

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Inclusive: Pressure sealing flange

in stainless steel AISI 304

Flange width: 63 mm

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Inclusive: Glue flange and counter flange

Compatibility: For bathroom drain Classic,

The Superflat and Floordrain ME

Inclusive: Lip seal

3

9
