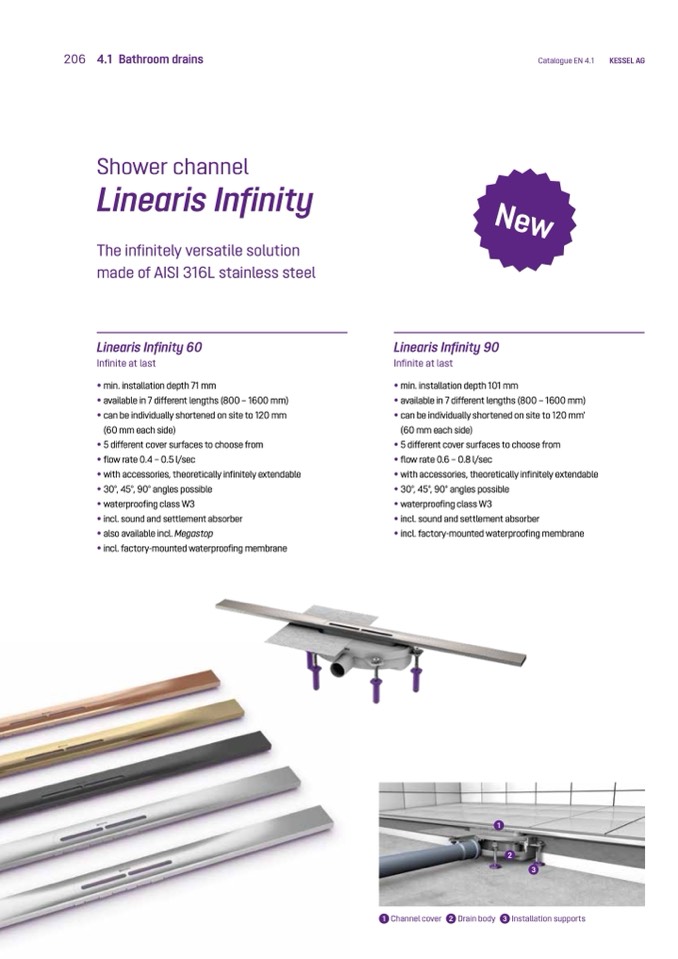

206 4.1 Bathroom drains

Catalogue EN 4.1

KESSEL AG

Shower channel

Linearis Infinity

The infinitely versatile solution

made of AISI 316L stainless steel

Linearis Infinity 60

Infinite at last

• min. installation depth 71 mm

• available in 7 different lengths (800 – 1600 mm)

• can be individually shortened on site to 120 mm

(60 mm each side)

• 5 different cover surfaces to choose from

• flow rate 0.4 – 0.5 l/sec

• with accessories, theoretically infinitely extendable

• 30°, 45°, 90° angles possible

• waterproofing class W3

• incl. sound and settlement absorber

• also available incl. Megastop

• incl. factory-mounted waterproofing membrane

Linearis Infinity 90

Infinite at last

• min. installation depth 101 mm

• available in 7 different lengths (800 – 1600 mm)

• can be individually shortened on site to 120 mm'

(60 mm each side)

• 5 different cover surfaces to choose from

• flow rate 0.6 – 0.8 l/sec

• with accessories, theoretically infinitely extendable

• 30°, 45°, 90° angles possible

• waterproofing class W3

• incl. sound and settlement absorber

• incl. factory-mounted waterproofing membrane

1

2

3

1

Channel cover 2 Drain body

3 Installation supports

New
