KESSEL AG

Catalogue EN 4.1

4.1 Bathroom drains 207

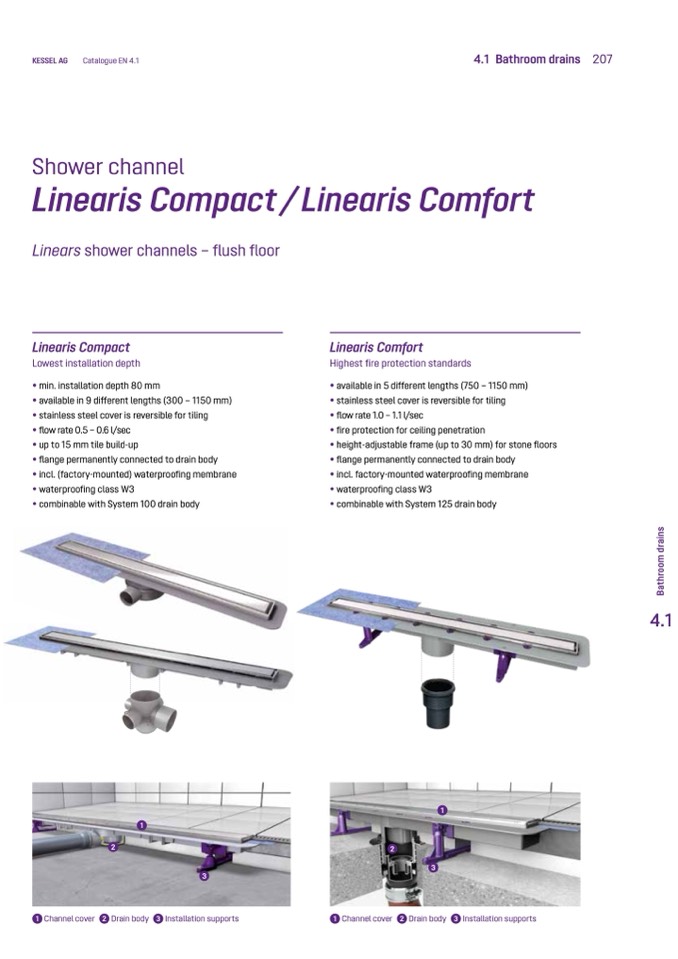

Shower channel

Linearis Compact / Linearis Comfort

Linears shower channels – flush floor

Linearis Compact

Lowest installation depth

• min. installation depth 80 mm

• available in 9 different lengths (300 – 1150 mm)

• stainless steel cover is reversible for tiling

• flow rate 0.5 – 0.6 l/sec

• up to 15 mm tile build-up

• flange permanently connected to drain body

• incl. (factory-mounted) waterproofing membrane

• waterproofing class W3

• combinable with System 100 drain body

Linearis Comfort

Highest fire protection standards

• available in 5 different lengths (750 – 1150 mm)

• stainless steel cover is reversible for tiling

• flow rate 1.0 – 1.1 l/sec

• fire protection for ceiling penetration

• height-adjustable frame (up to 30 mm) for stone floors

• flange permanently connected to drain body

• incl. factory-mounted waterproofing membrane

• waterproofing class W3

• combinable with System 125 drain body

1

1

2

2

3

1 Channel cover

2 Drain body

3 Installation supports

1 Channel cover

2 Drain body

3 Installation supports

3
