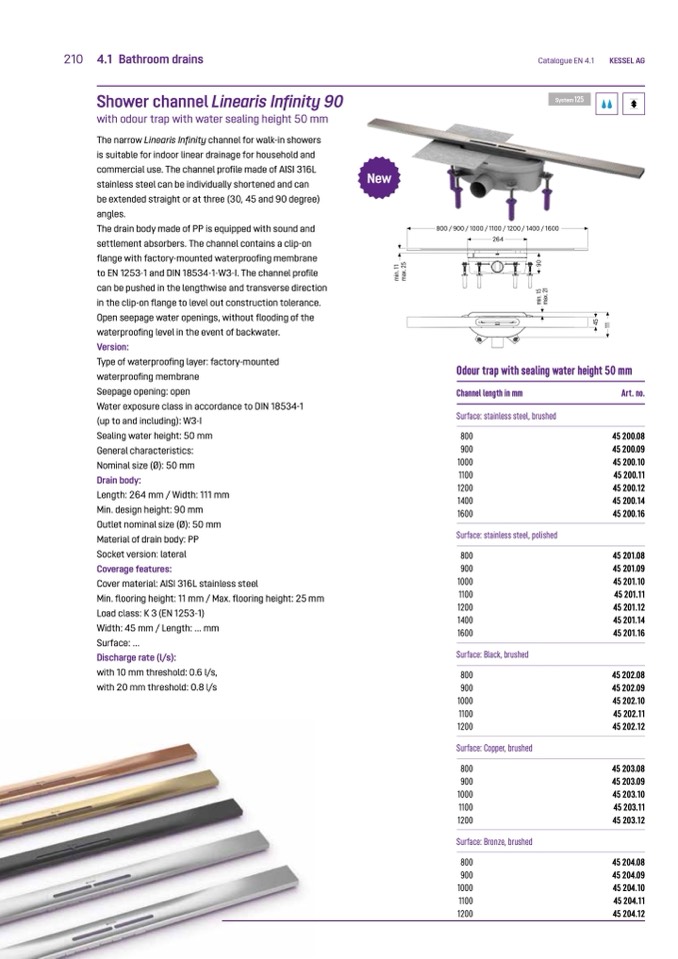

210 4.1 Bathroom drains
Shower channel Linearis Infinity 90
with odour trap with water sealing height 50 mm
The narrow Linearis Infinity channel for walk-in showers
is suitable for indoor linear drainage for household and
commercial use. The channel profile made of AISI 316L
stainless steel can be individually shortened and can
be extended straight or at three (30, 45 and 90 degree)
angles.
The drain body made of PP is equipped with sound and
settlement absorbers. The channel contains a clip-on
flange with factory-mounted waterproofing membrane
to EN 1253-1 and DIN 18534-1-W3-I. The channel profile
can be pushed in the lengthwise and transverse direction
in the clip-on flange to level out construction tolerance.
Open seepage water openings, without flooding of the
waterproofing level in the event of backwater.
Version:
Type of waterproofing layer: factory-mounted
waterproofing membrane
Seepage opening: open
Water exposure class in accordance to DIN 18534-1
(up to and including): W3-I
Sealing water height: 50 mm
General characteristics:
Nominal size (Ø): 50 mm
Drain body:
Length: 264 mm / Width: 111 mm
Min. design height: 90 mm
Outlet nominal size (Ø): 50 mm
Material of drain body: PP
Socket version: lateral
Coverage features:
Cover material: AISI 316L stainless steel
Min. flooring height: 11 mm / Max. flooring height: 25 mm
Load class: K 3 (EN 1253-1)
Width: 45 mm / Length: ... mm
Surface: ...
Discharge rate (l/s):
with 10 mm threshold: 0.6 l/s,
with 20 mm threshold: 0.8 l/s
Catalogue EN 4.1
KESSEL AG
New
800 / 900 / 1000 / 1100 / 1200 / 1400 / 1600
264
4
5
1
1
1
m
i
n
.
1
5
9
0
m
a
x
.
2
1
m
i
n
.
1
1
m
a
x
.
2
5
Odour trap with sealing water height 50 mm
Channel length in mm
Surface: stainless steel, brushed
800
900
1000
1100
1200
1400
1600
Surface: stainless steel, polished
800
900
1000
1100
1200
1400
1600
Surface: Black, brushed
800
900
1000
1100
1200
Surface: Copper, brushed
800
900
1000
1100
1200
Surface: Bronze, brushed
800
900
1000
1100
1200
Art. no.
45 200.08
45 200.09
45 200.10
45 200.11
45 200.12
45 200.14
45 200.16
45 201.08
45 201.09
45 201.10
45 201.11
45 201.12
45 201.14
45 201.16
45 202.08
45 202.09
45 202.10
45 202.11
45 202.12
45 203.08
45 203.09
45 203.10
45 203.11
45 203.12
45 204.08
45 204.09
45 204.10
45 204.11
45 204.12
