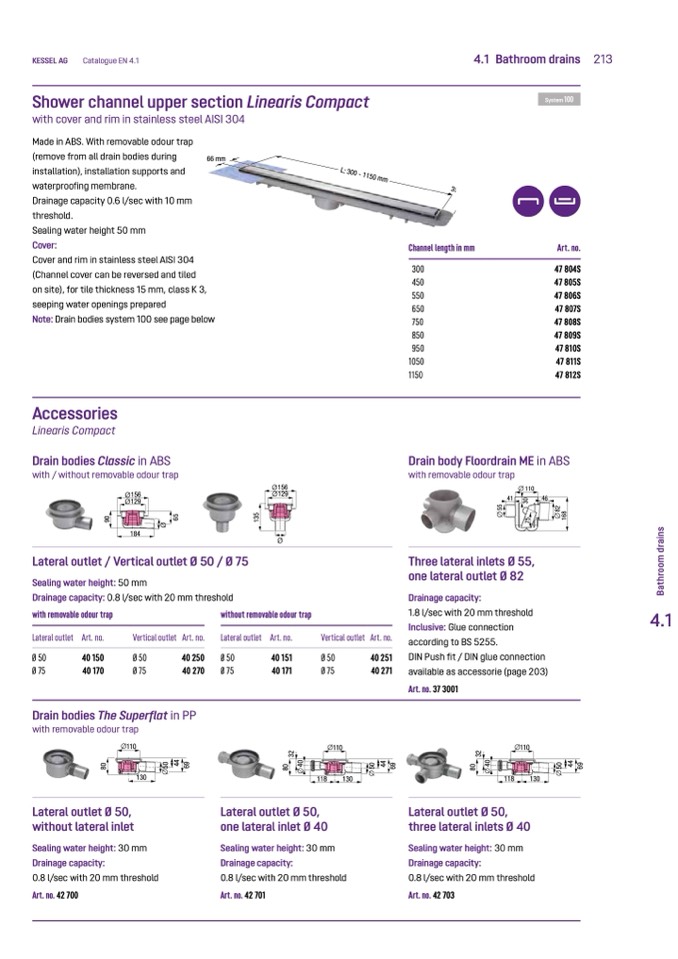

Bathroom drains 213
Shower channel upper section Linearis Compact
with cover and rim in stainless steel AISI 304
Made in ABS. With removable odour trap
(remove from all drain bodies during
installation), installation supports and
waterproofing membrane.
Drainage capacity 0.6 l/sec with 10 mm
threshold.
Sealing water height 50 mm
Cover:
Cover and rim in stainless steel AISI 304
(Channel cover can be reversed and tiled
on site), for tile thickness 15 mm, class K 3,
seeping water openings prepared
Note: Drain bodies system 100 see page below
Accessories
Linearis Compact
Drain bodies Classic in ABS
with / without removable odour trap
Ø 156
Ø 129
184
Lateral outlet / Vertical outlet Ø 50 / Ø 75
Sealing water height: 50 mm
Drainage capacity: 0.8 l/sec with 20 mm threshold
L: 300 - 1150 mm
35 mm
46
8
2
with removable odour trap
Lateral outlet Art. no.
without removable odour trap
Lateral outlet Art. no.
4.1
Ø50
40150
Ø50
40250
Ø75
40170
Ø75
40270
Drain bodies The Superflat in PP
with removable odour trap
110
Lateral outlet Ø 50,
without lateral inlet
Ø50
40151
Ø50
40251
Ø75
40171
Ø75
40271
8
0
9
0
4
4
6
9
6
5
8
0
3
2
4
0
4
4
6
9
8
0
3
2
4
0
4
4
6
9
1
6
8
B
a
t
h
r
o
o
m
d
r
a
i
n
s
1
3
5
7
5
5
5
3
0
5
0
5
0
5
0
Ø
Sealing water height: 30 mm
Drainage capacity:
0.8 l/sec with 20 mm threshold
Art. no. 42 700
Lateral outlet Ø 50,
one lateral inlet Ø 40
Sealing water height: 30 mm
Drainage capacity:
0.8 l/sec with 20 mm threshold
Art. no. 42 701
Vertical outlet
Art. no.
Vertical outlet
Art. no.
130
118
110
130
66 mm
Ø 156
Ø 129
Ø
Drain body Floordrain ME in ABS
with removable odour trap
110
41
Three lateral inlets Ø 55,
one lateral outlet Ø 82
Drainage capacity:
1.8 l/sec with 20 mm threshold
Inclusive: Glue connection
according to BS 5255.
DIN Push fit / DIN glue connection
available as accessorie (page 203)
Art. no. 37 3001
110
118
130
Lateral outlet Ø 50,
three lateral inlets Ø 40
Sealing water height: 30 mm
Drainage capacity:
0.8 l/sec with 20 mm threshold
Art. no. 42 703
FOTO. 40150
Channel length in mm
300
450
550
650
750
850
950
1050
1150
Art. no.
47 804S
47 805S
47 806S
47 807S
47 808S
47 809S
47 810S
47 811S
47 812S
