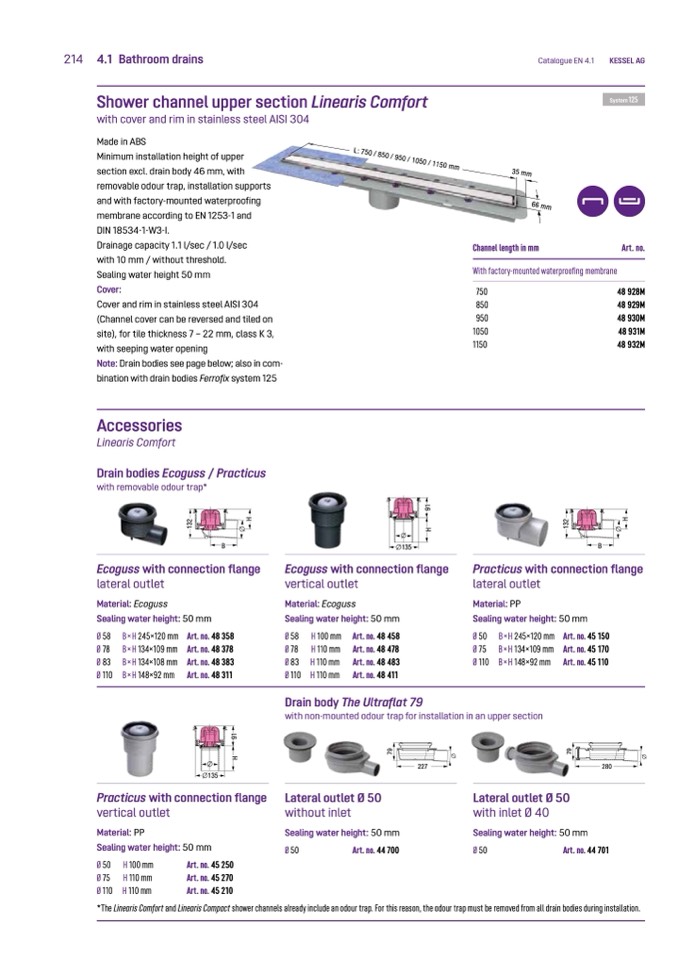

Shower channel upper section Linearis Comfort
with cover and rim in stainless steel AISI 304
Made in ABS
Minimum installation height of upper
section excl. drain body 46 mm, with
removable odour trap, installation supports
and with factory-mounted waterproofing
membrane according to EN 1253-1 and
DIN 18534-1-W3-I.
Drainage capacity 1.1 l/sec / 1.0 l/sec
with 10 mm / without threshold.
Sealing water height 50 mm
Cover:
Cover and rim in stainless steel AISI 304
(Channel cover can be reversed and tiled on
site), for tile thickness 7 – 22 mm, class K 3,
with seeping water opening
Note: Drain bodies see page below; also in com-
bination with drain bodies Ferrofix system 125
Accessories
Linearis Comfort
Drain bodies Ecoguss / Practicus
with removable odour trap*
Catalogue EN 4.1
KESSEL AG
L: 750 / 850 / 950 / 1050 / 1150 mm
35 mm
66 mm
Ecoguss with connection flange
lateral outlet
151
Ecoguss with connection flange
vertical outlet
Practicus with connection flange
lateral outlet
151
Material: Ecoguss
Sealing water height: 50 mm
Ø 58
Ø 78
Ø 83
Ø 110
B×H 245×120 mm
B×H 134×109 mm
B×H 134×108 mm
B×H 148×92 mm
Art. no. 48 358
Art. no. 48 378
Art. no. 48 383
Art. no. 48 311
135
Ø 50
Ø 75
Ø 110
B×H 245×120 mm
B×H 134×109 mm
B×H 148×92 mm
Art. no. 45 150
Art. no. 45 170
Art. no. 45 110
280
Practicus with connection flange
vertical outlet
Material: PP
Sealing water height: 50 mm
Lateral outlet Ø 50
without inlet
Sealing water height: 50 mm
Ø50
Art.no.44700
Lateral outlet Ø 50
with inlet Ø 40
Ø50 H100mm
Ø75 H110mm
Ø110 H110mm
Art.no.45250
Art.no.45270
Art.no.45210
B
135
B
Material: Ecoguss
A
A
A
A
Sealing water height: 50 mm
Ø58 H100mm Art.no.48458
Ø78 H110mm Art.no.48478
Ø83 H110mm Art.no.48483
Ø110 H110mm Art.no.48411
Material: PP
Sealing water height: 50 mm
Drain body The Ultraflat 79
with non-mounted odour trap for installation in an upper section
*The Linearis Comfort and Linearis Compact shower channels already include an odour trap. For this reason, the odour trap must be removed from all drain bodies during installation.
227
Channel length in mm
Art. no.
48 928M
48 929M
48 930M
48 931M
48 932M
With factory-mounted waterproofing membrane
750
850
950
1050
1150
H
9
1
7
9
7
9
1
3
2
1
3
2
9
2
1
3
2
9
2
1
3
2
H
H
9
1
H
Sealing water height: 50 mm
Ø50
Art.no.44701
