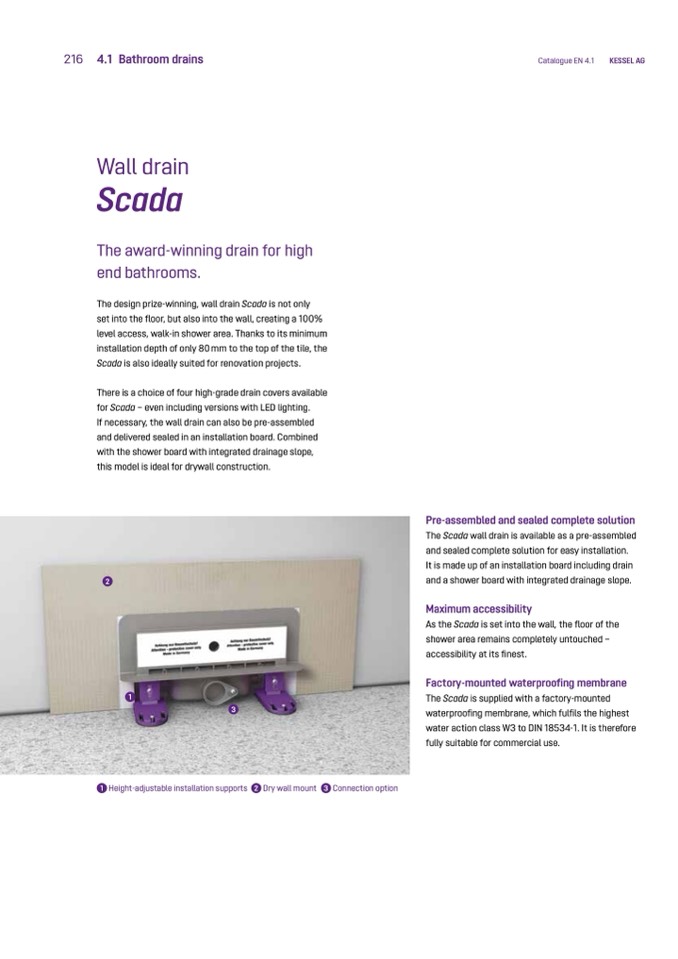

216 4.1 Bathroom drains

Catalogue EN 4.1

KESSEL AG

Wall drain

Scada

The award-winning drain for high

end bathrooms.

The design prize-winning, wall drain Scada is not only

set into the floor, but also into the wall, creating a 100%

level access, walk-in shower area. Thanks to its minimum

installation depth of only 80 mm to the top of the tile, the

Scada is also ideally suited for renovation projects.

There is a choice of four high-grade drain covers available

for Scada – even including versions with LED lighting.

If necessary, the wall drain can also be pre-assembled

and delivered sealed in an installation board. Combined

with the shower board with integrated drainage slope,

this model is ideal for drywall construction.

2

Pre-assembled and sealed complete solution

The Scada wall drain is available as a pre-assembled

and sealed complete solution for easy installation.

It is made up of an installation board including drain

and a shower board with integrated drainage slope.

Maximum accessibility

As the Scada is set into the wall, the floor of the

shower area remains completely untouched –

accessibility at its finest.

Factory-mounted waterproofing membrane

The Scada is supplied with a factory-mounted

waterproofing membrane, which fulfils the highest

water action class W3 to DIN 18534-1. It is therefore

fully suitable for commercial use.

1

3

1

Height-adjustable installation supports 2

Dry wall mount 3

Connection option
