Kessel - 4.1

KESSEL AG

Catalogue EN 4.1

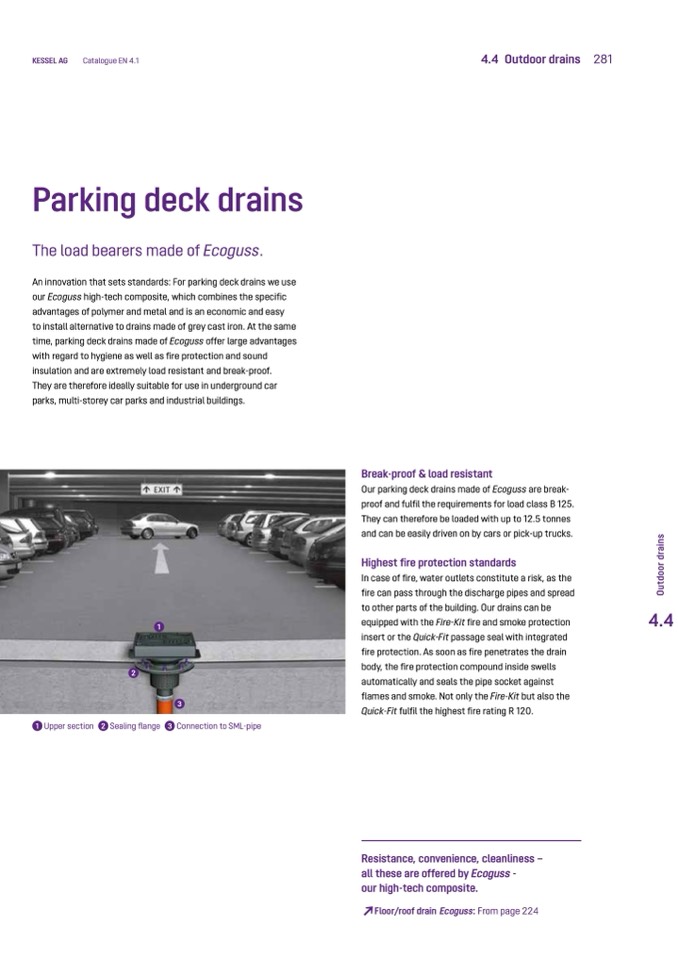

Parking deck drains

An innovation that sets standards: For parking deck drains we use

our Ecoguss high-tech composite, which combines the specific

advantages of polymer and metal and is an economic and easy

to install alternative to drains made of grey cast iron. At the same

time, parking deck drains made of Ecoguss offer large advantages

with regard to hygiene as well as fire protection and sound

insulation and are extremely load resistant and break-proof.

They are therefore ideally suitable for use in underground car

parks, multi-storey car parks and industrial buildings.

Break-proof & load resistant

Our parking deck drains made of Ecoguss are break-

proof and fulfil the requirements for load class B 125.

They can therefore be loaded with up to 12.5 tonnes

and can be easily driven on by cars or pick-up trucks.

Highest fire protection standards

In case of fire, water outlets constitute a risk, as the

fire can pass through the discharge pipes and spread

to other parts of the building. Our drains can be

equipped with the Fire-Kit fire and smoke protection

insert or the Quick-Fit passage seal with integrated

fire protection. As soon as fire penetrates the drain

body, the fire protection compound inside swells

automatically and seals the pipe socket against

flames and smoke. Not only the Fire-Kit but also the

Quick-Fit fulfil the highest fire rating R 120.

Resistance, convenience, cleanliness –

all these are offered by Ecoguss -

our high-tech composite.

Floor/roof drain Ecoguss: From page 224

1 Upper section

2 Sealing flange

3 Connection to SML-pipe
