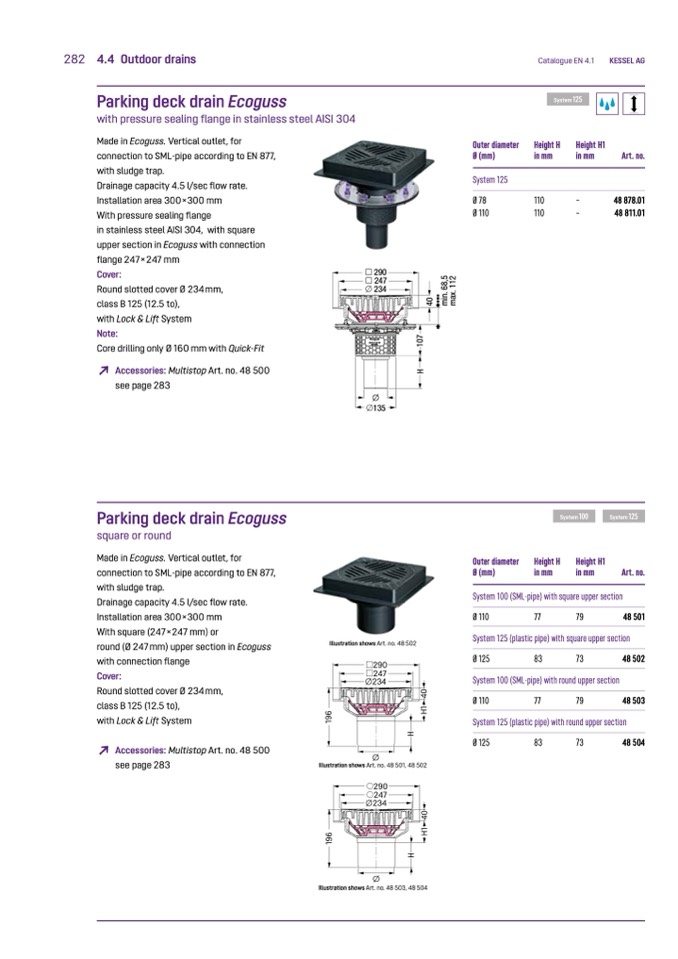

282 4.4 Outdoor drains

Parking deck drain Ecoguss

with pressure sealing flange in stainless steel AISI 304

Catalogue EN 4.1

KESSEL AG

Art. no.

48 878.01

48 811.01

Made in Ecoguss. Vertical outlet, for

connection to SML-pipe according to EN 877,

with sludge trap.

Drainage capacity 4.5 l/sec flow rate.

Installation area 300×300 mm

With pressure sealing flange

in stainless steel AISI 304, with square

upper section in Ecoguss with connection

flange 247×247 mm

Cover:

Round slotted cover Ø 234 mm,

class B 125 (12.5 to),

with Lock & Lift System

Note:

Core drilling only Ø 160 mm with Quick-Fit

↗

Accessories: Multistop Art. no. 48 500

see page 283

Parking deck drain Ecoguss

square or round

Made in Ecoguss. Vertical outlet, for

connection to SML-pipe according to EN 877,

with sludge trap.

Drainage capacity 4.5 l/sec flow rate.

Installation area 300×300 mm

With square (247×247 mm) or

round (Ø 247 mm) upper section in Ecoguss

with connection flange

Cover:

Round slotted cover Ø 234 mm,

class B 125 (12.5 to),

with Lock & Lift System

↗

Accessories: Multistop Art. no. 48 500

see page 283

Outer diameter

Ø (mm)

System 125

Ø78

Ø 110

Height H

in mm

110

110

Height H1

in mm

–

–

290

247

234

135

Illustration shows Art. no. 48 502

290

System 100 (SML-pipe) with square upper section

Ø110

77

79

48501

System 125 (plastic pipe) with square upper section

Ø125

83

73

48502

Ø

Illustration shows Art. no. 48 501, 48 502

290

247

Ø234

Ø

1

9

6

1

9

6

H

H

H

1

4

0

H

1

4

0

H

1

0

7

4

0

m

i

n

.

6

8

,

5

m

a

x

.

1

1

2

Illustration shows Art. no. 48 503, 48 504

Outer diameter

Ø (mm)

Height H

in mm

Height H1

in mm

Art. no.

247

Ø234

System 100 (SML-pipe) with round upper section

Ø110

77

79

48503

System 125 (plastic pipe) with round upper section

Ø125

83

73

48504
