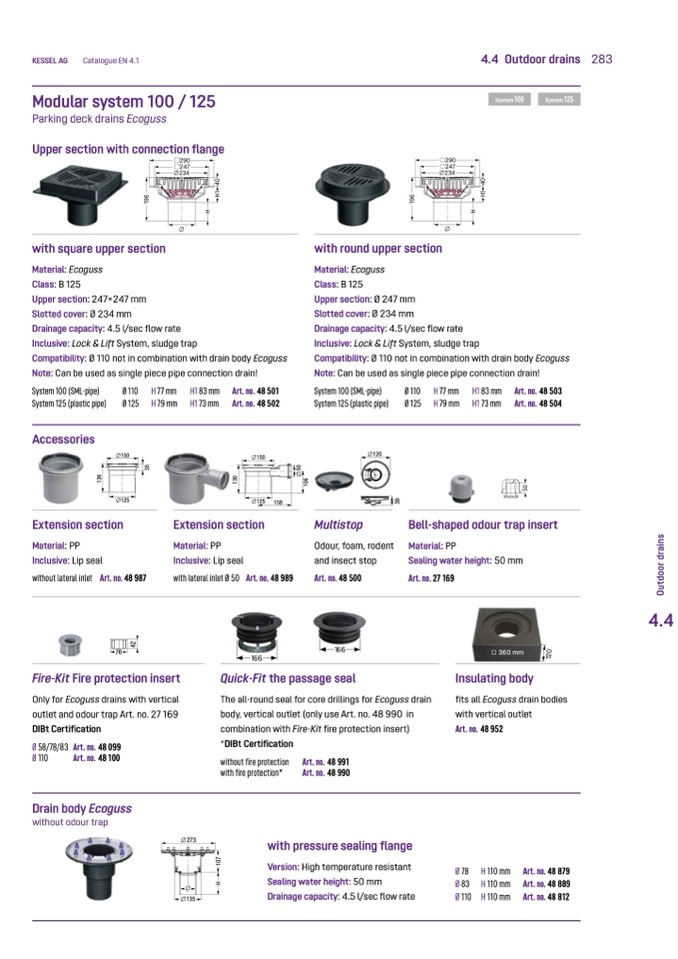

KESSEL AG

Catalogue EN 4.1

4.4 Outdoor drains 283

Modular system 100 / 125

Parking deck drains Ecoguss

Upper section with connection flange

with square upper section

Material: Ecoguss

Class: B 125

Upper section: 247×247 mm

Slotted cover: Ø 234 mm

Drainage capacity: 4.5 l/sec flow rate

Inclusive: Lock & Lift System, sludge trap

Compatibility: Ø 110 not in combination with drain body Ecoguss

Note: Can be used as single piece pipe connection drain!

with round upper section

Material: Ecoguss

Class: B 125

Upper section: Ø 247 mm

Slotted cover: Ø 234 mm

Drainage capacity: 4.5 l/sec flow rate

Inclusive: Lock & Lift System, sludge trap

Compatibility: Ø 110 not in combination with drain body Ecoguss

Note: Can be used as single piece pipe connection drain!

System 100 (SML-pipe)

Ø 110

System 125 (plastic pipe)

Ø 125

Accessories

150

125

Extension section

Material: PP

Inclusive: Lip seal

without lateral inlet Art. no. 48 987

76

Fire-Kit Fire protection insert

Only for Ecoguss drains with vertical

outlet and odour trap Art. no. 27 169

Art. no. 48 501

Art. no. 48 502

150

System 100 (SML-pipe)

System 125 (plastic pipe)

120

Multistop

and insect stop

Art. no. 48 500

166

Ø 110 H 77 mm H1 83 mm Art. no. 48 503

Ø 125 H 79 mm H1 73 mm Art. no. 48 504

Bell-shaped odour trap insert

Material: PP

Sealing water height: 50 mm

Art. no. 27 169

360 mm

Insulating body

fits all Ecoguss drain bodies

with vertical outlet

Art. no. 48 952

FOTO. 48500

FOTO. 48500

Ø78 H110mm Art.no.48879

Ø83 H110mm Art.no.48889

Ø110 H110mm Art.no.48812

DIBt Certi

fication

Ø58/78/83 Art.no.48099

Ø 110

Art. no. 48 100

Drain body Ecoguss

without odour trap

without fire protection

with fire protection*

Art. no. 48 991

Art. no. 48 990

156

125

158

Extension section

120

Odour, foam, rodent

H 77 mm

H 79 mm

H1 83 mm

H1 73 mm

FOTO. 48987

Quick-Fit the passage seal

The all-round seal for core drillings for Ecoguss drain

body, vertical outlet (only use Art. no. 48 990 in

combination with Fire-Kit fire protection insert)

*DIBt Certification

290

247

Ø234

290

247

Ø234

Ø

Ø

Material: PP

Inclusive: Lip seal

with lateral inlet Ø 50

Art. no. 48 989

166

1

2

0

273

135

with pressure sealing flange

Version: High temperature resistant

Sealing water height: 50 mm

Drainage capacity: 4.5 l/sec flow rate

FOTO. 48989
