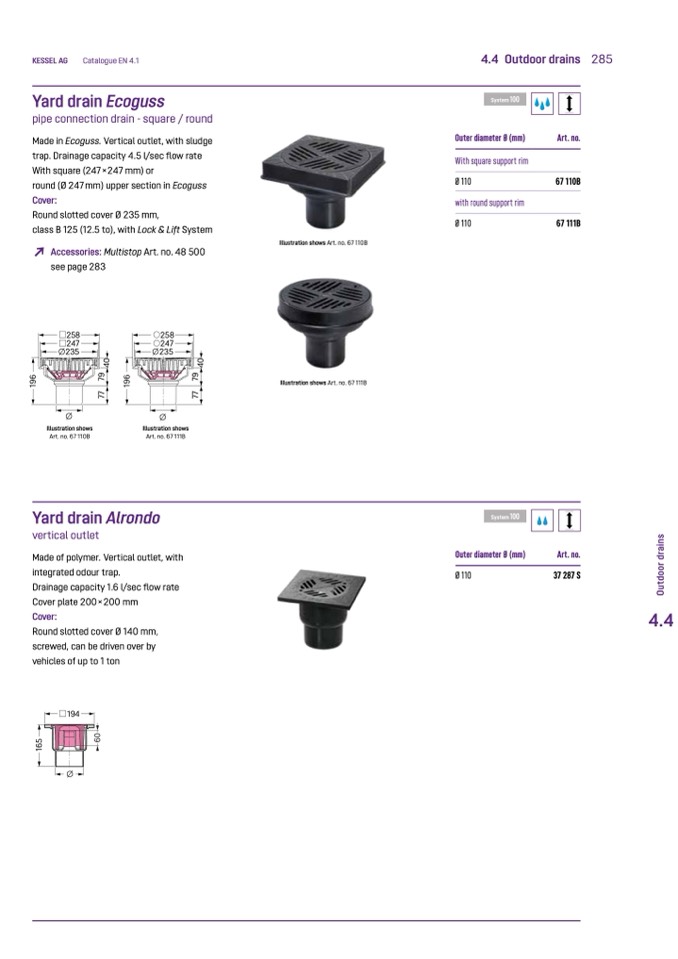

4.4 Outdoor drains 285

Yard drain Ecoguss

pipe connection drain - square / round

Made in Ecoguss. Vertical outlet, with sludge

trap. Drainage capacity 4.5 l/sec flow rate

With square (247×247 mm) or

round (Ø 247 mm) upper section in Ecoguss

Cover:

Round slotted cover Ø 235 mm,

class B 125 (12.5 to), with Lock & Lift System

↗

Accessories: Multistop Art. no. 48 500

see page 283

258

258

247

247

Ø235

Ø235

Ø

Ø

Illustration shows

Illustration shows

Art. no. 67 110B

Art. no. 67 111B

Yard drain Alrondo

vertical outlet

Made of polymer. Vertical outlet, with

integrated odour trap.

Drainage capacity 1.6 l/sec flow rate

Cover plate 200×200 mm

Cover:

Round slotted cover Ø 140 mm,

screwed, can be driven over by

vehicles of up to 1 ton

194

Ø

Outer diameter Ø (mm)

With square support rim

Ø 110

with round support rim

Ø 110

Art. no.

67 110B

67 111B

Illustration shows Art. no. 67 110B

Illustration shows Art. no. 67 111B

Outer diameter Ø (mm)

Art. no.

Ø110

37287S
