288 4.4 Outdoor drains

Catalogue EN 4.1

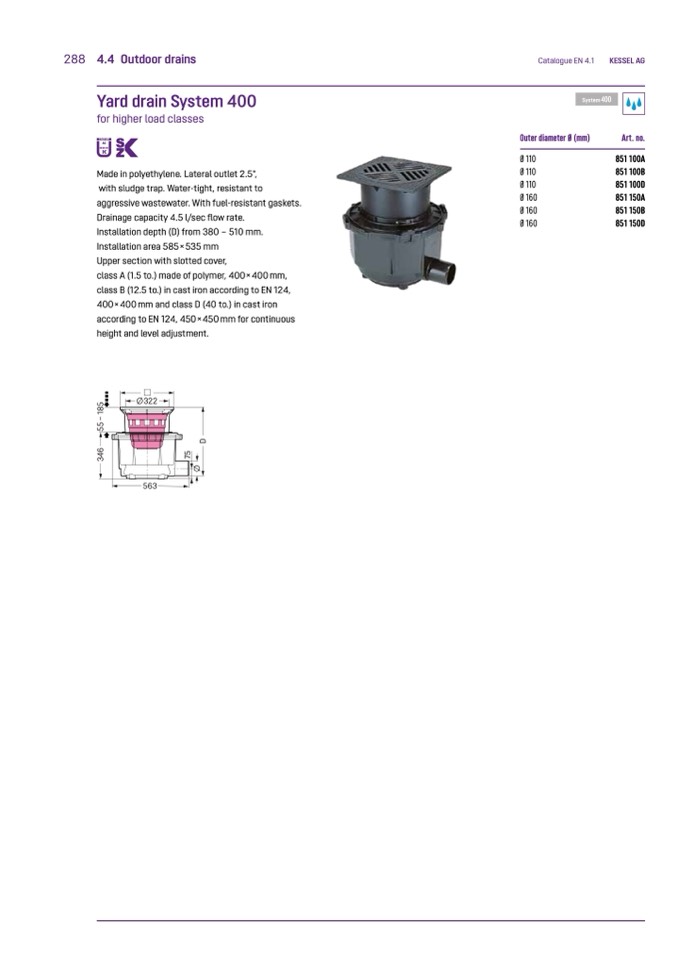

Yard drain System 400

KESSEL AG

Art. no.

851 100A

851 100B

851 100D

851 150A

851 150B

851 150D

for higher load classes

Made in polyethylene. Lateral outlet 2.5°,

with sludge trap. Water-tight, resistant to

aggressive wastewater. With fuel-resistant gaskets.

Drainage capacity 4.5 l/sec flow rate.

Installation depth (D) from 380 – 510 mm.

Installation area 585×535 mm

Upper section with slotted cover,

class A (1.5 to.) made of polymer, 400×400 mm,

class B (12.5 to.) in cast iron according to EN 124,

400×400 mm and class D (40 to.) in cast iron

according to EN 124, 450×450 mm for continuous

height and level adjustment.

Ø 322

563

Outer diameter Ø (mm)

Ø 110

Ø 110

Ø 110

Ø 160

Ø 160

Ø 160

Ø

7

5

3

4

6

5

5

–

1

8

5

D
