KESSEL AG

Catalogue EN 4.1

4.4 Outdoor drains 289

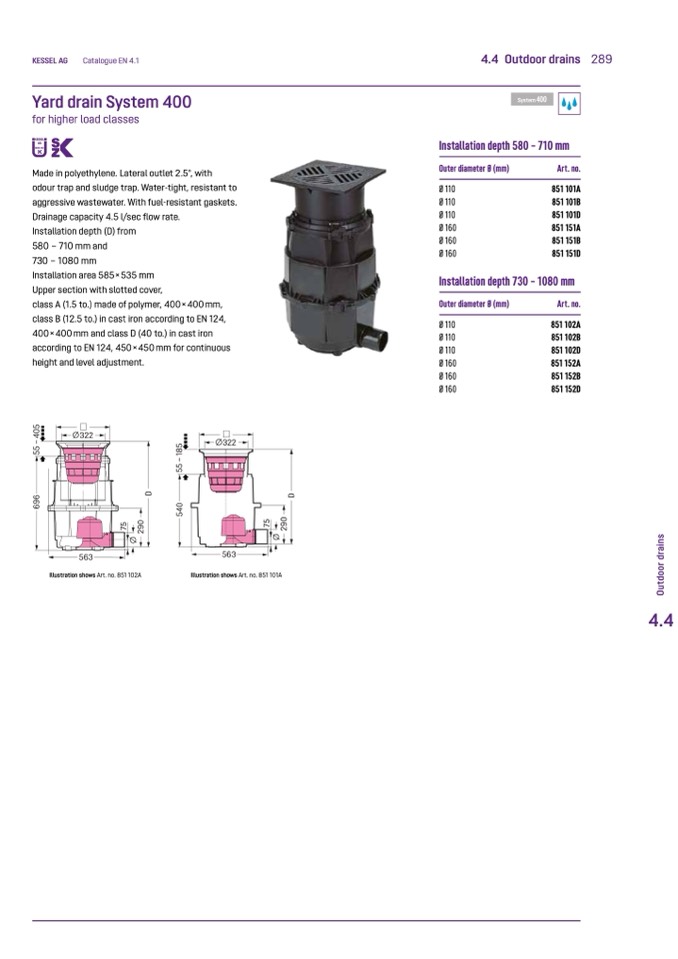

Yard drain System 400

for higher load classes

Made in polyethylene. Lateral outlet 2.5°, with

odour trap and sludge trap. Water-tight, resistant to

aggressive wastewater. With fuel-resistant gaskets.

Drainage capacity 4.5 l/sec flow rate.

Installation depth (D) from

580 – 710 mm and

730 – 1080 mm

Installation area 585×535 mm

Upper section with slotted cover,

class A (1.5 to.) made of polymer, 400×400 mm,

class B (12.5 to.) in cast iron according to EN 124,

400×400 mm and class D (40 to.) in cast iron

according to EN 124, 450×450 mm for continuous

height and level adjustment.

Installation depth 580 – 710 mm

Ø322

563

Illustration shows Art. no. 851 102A

Ø322

563

Illustration shows Art. no. 851 101A

Outer diameter Ø (mm)

Ø 110

Ø 110

Ø 110

Ø 160

Ø 160

Ø 160

Art. no.

851 101A

851 101B

851 101D

851 151A

851 151B

851 151D

Installation depth 730 – 1080 mm

Outer diameter Ø (mm)

Ø 110

Ø 110

Ø 110

Ø 160

Ø 160

Ø 160

Art. no.

851 102A

851 102B

851 102D

851 152A

851 152B

851 152D

O

u

t

d

o

o

r

d

r

a

i

n

s

Ø

7

5

Ø

7

5

2

9

0

D

5

4

0

5

5

–

1

8

5

2

9

0

D

6

9

6

5

5

–

4

0

5

4.4
