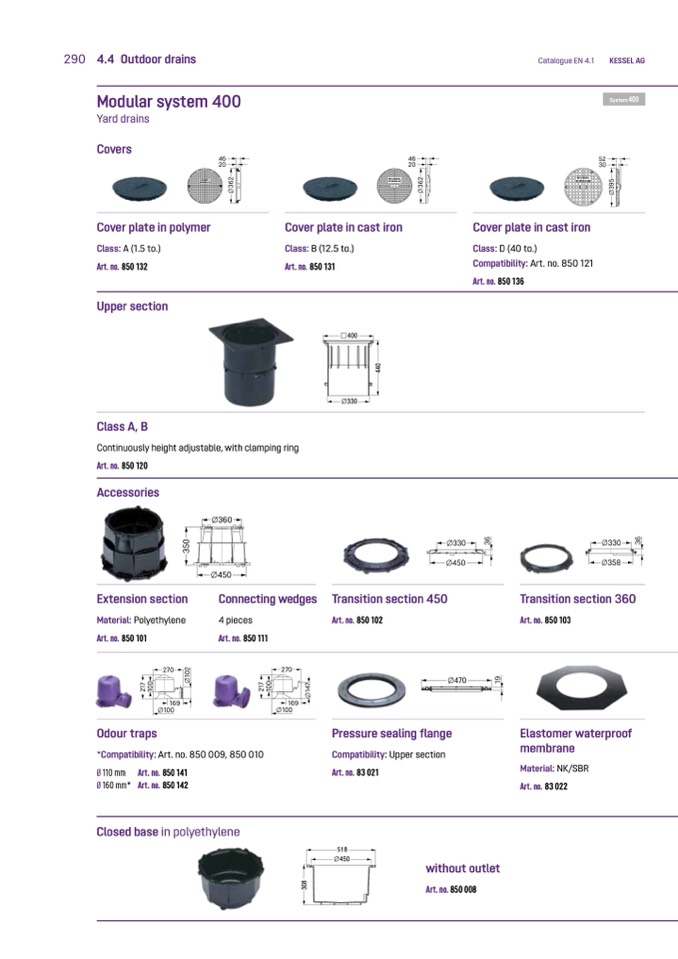

290 4.4 Outdoor drains
Catalogue EN 4.1
KESSEL AG
Modular system 400
Yard drains
Covers
Cover plate in polymer
Class: A (1.5 to.)
Art. no. 850 132
Upper section
Class A, B
Continuously height adjustable, with clamping ring
Art. no. 850 120
Accessories
Extension section
Material: Polyethylene
Art. no. 850 101
270
169
100
360
450
Connecting wedges
330
450
330
358
Transition section 360
Art. no. 850 103
Elastomer waterproof
membrane
Material: NK/SBR
Art.no.83022
Odour traps
*Compatibility: Art. no. 850 009, 850 010
Ø 110 mm Art. no. 850 141
Ø160mm* Art.no.850142
Closed base in polyethylene
46
46
52
20
20
30
4 pieces
Art. no. 850 111
Transition section 450
Art. no. 850 102
470
Pressure sealing flange
Compatibility: Upper section
Art. no. 83 021
Cover plate in cast iron
Class: B (12.5 to.)
Art. no. 850 131
400
330
Cover plate in cast iron
Class: D (40 to.)
Compatibility: Art. no. 850 121
Art. no. 850 136
270
169
100
518
450
without outlet
Art. no. 850 008
3
0
8
1
4
7
2
1
7
1
0
0
2
1
7
1
0
0
1
0
2
3
5
0
1
9
3
6
3
6
4
4
0
3
6
2
3
6
2
3
9
5
