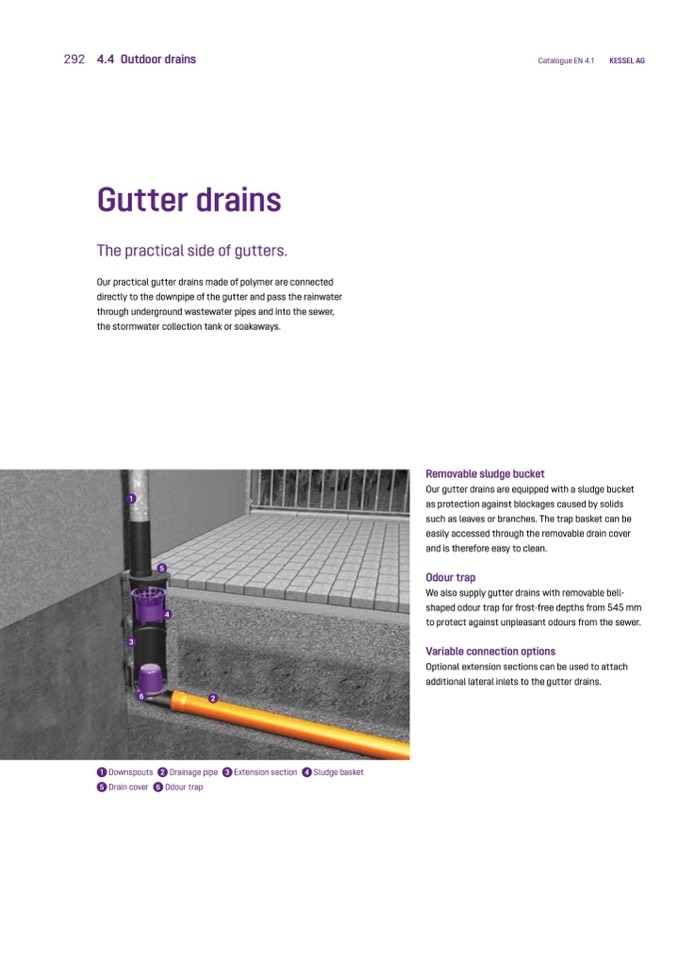

Gutter drains

The practical side of gutters.

Our practical gutter drains made of polymer are connected

directly to the downpipe of the gutter and pass the rainwater

through underground wastewater pipes and into the sewer,

the stormwater collection tank or soakaways.

1

4

3

6

1 Downspouts

5 Drain cover

Removable sludge bucket

Our gutter drains are equipped with a sludge bucket

as protection against blockages caused by solids

such as leaves or branches. The trap basket can be

easily accessed through the removable drain cover

and is therefore easy to clean.

Odour trap

We also supply gutter drains with removable bell-

shaped odour trap for frost-free depths from 545 mm

to protect against unpleasant odours from the sewer.

Variable connection options

Optional extension sections can be used to attach

additional lateral inlets to the gutter drains.

5

2

2

Drainage pipe

Odour trap

3 Extension section

4 Sludge basket
