KESSEL AG

Catalogue EN 4.1

4.4 Outdoor drains 299

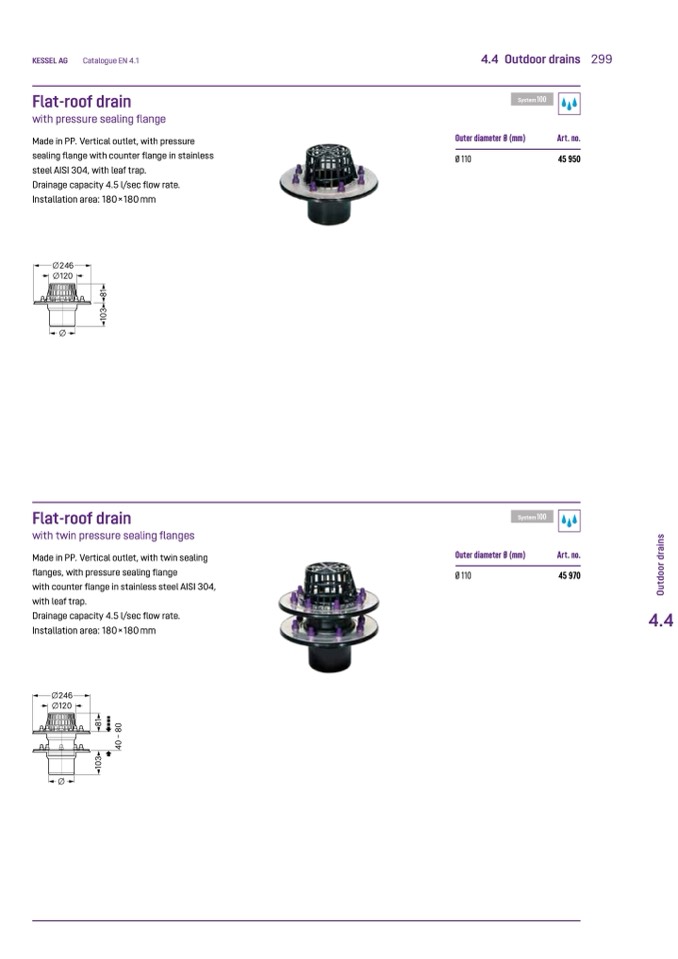

Flat-roof drain

with pressure sealing flange

Made in PP. Vertical outlet, with pressure

sealing flange with counter

flange in stainless

steel AISI 304, with leaf trap.

Drainage capacity 4.5 l/sec flow rate.

Installation area: 180×180 mm

Ø246

Ø120

Ø

Outer diameter Ø (mm)

Ø 110

Art. no.

45 950

Flat-roof drain

with twin pressure sealing flanges

Made in PP. Vertical outlet, with twin sealing

flanges, with pressure sealing flange

with counter flange in stainless steel AISI 304,

with leaf trap.

Drainage capacity 4.5 l/sec flow rate.

Installation area: 180×180 mm

Ø246

Ø120

Ø

Outer diameter Ø (mm)

Ø 110

Art. no.

45 970
