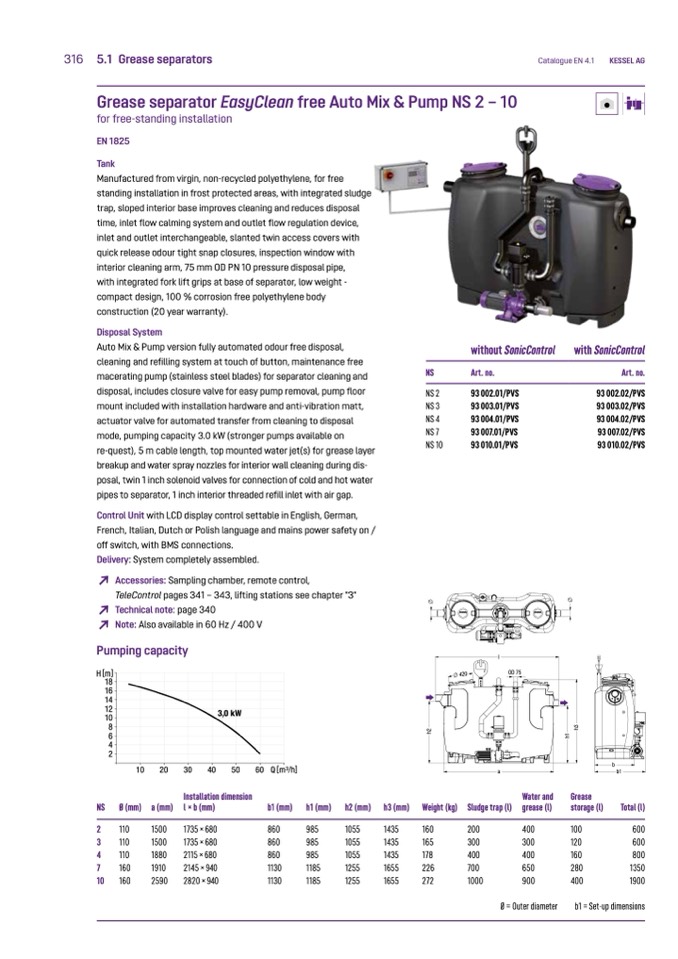

316 5.1 Grease separators

Catalogue EN 4.1

KESSEL AG

Grease separator EasyClean free Auto Mix & Pump NS 2 – 10

for free-standing installation

EN 1825

Tank

Manufactured from virgin, non-recycled polyethylene, for free

standing installation in frost protected areas, with integrated sludge

trap, sloped interior base improves cleaning and reduces disposal

time, inlet flow calming system and outlet flow regulation device,

inlet and outlet interchangeable, slanted twin access covers with

quick release odour tight snap closures, inspection window with

interior cleaning arm, 75 mm OD PN 10 pressure disposal pipe,

with integrated fork lift grips at base of separator, low weight -

compact design, 100 % corrosion free polyethylene body

construction (20 year warranty).

Disposal System

Auto Mix & Pump version fully automated odour free disposal,

cleaning and refilling system at touch of button, maintenance free

macerating pump (stainless steel blades) for separator cleaning and

disposal, includes closure valve for easy pump removal, pump floor

mount included with installation hardware and anti-vibration matt,

actuator valve for automated transfer from cleaning to disposal

mode, pumping capacity 3.0 kW (stronger pumps available on

re-quest), 5 m cable length, top mounted water jet(s) for grease layer

breakup and water spray nozzles for interior wall cleaning during dis-

posal, twin 1 inch solenoid valves for connection of cold and hot water

pipes to separator, 1 inch interior threaded refill inlet with air gap.

Control Unit with LCD display control settable in English, German,

French, Italian, Dutch or Polish language and mains power safety on /

off switch, with BMS connections.

Delivery: System completely assembled.

↗

Accessories: Sampling chamber, remote control,

TeleControl pages 341 – 343, lifting stations see chapter "3"

without SonicControl

with SonicControl

Art. no.

93 002.02/PVS

93 003.02/PVS

93 004.02/PVS

93 007.02/PVS

93 010.02/PVS

420

420

420

h

2

h

2

h

2

h

1

h

3

h

1

h

3

h

1

h

3

↗

Technical note: page 340

Note: Also available in 60 Hz / 400 V

Pumping capacity

H [m]

18

16

14

12

10

8

6

4

2

3,0 kW

l

a

OD 75

OD 75

OD 75

NS

2

3

4

7

10

Ø (mm)

110

110

110

160

160

a (mm)

1500

1500

1880

1910

2590

Installation dimension

l ×b (mm)

1735 × 680

1735 × 680

2115 × 680

2145 × 940

2820 × 940

b1 (mm)

860

860

860

1130

1130

h1 (mm)

985

985

985

1185

1185

h2 (mm)

1055

1055

1055

1255

1255

h3 (mm)

1435

1435

1435

1655

1655

Weight (kg)

160

165

178

226

272

Water and

grease (l)

400

300

400

650

900

10

20

30

40

50

60Q[m

3

/h]

b

Grease

storage (l)

100

600

120

600

160

800

280

1350

400

1900

NS

NS 2

NS 3

NS 4

NS 7

NS 10

Art. no.

93 002.01/PVS

93 003.01/PVS

93 004.01/PVS

93 007.01/PVS

l

93 010.01/PVS

a

Sludge trap (l)

200

300

400

700

1000

b1

b

Total (l)

b1

a

l

b

b1

Ø = Outer diameter

b1 = Set-up dimensions
